YC-A-COM-0007 | 5.8 GHz Encapsulated Circularly Polarized Communication Antenna
Price on request
Request a quote5.8 GHz Encapsulated Circularly Polarized Communication Antenna covering 5500–6000 MHz with 3.5 dBi gain and 50 Ω input impedance. Select LHCP or RHCP. Connector configurations include RPSMA, SMA, UFL, MMCX and MMCX-L, with project-specific connector and cable customization.
Core specifications
| Parameter | Value |
|---|---|
| Frequency range | 5500–6000 MHz |
| Gain | 3.5 dBi |
| Input impedance | 50 Ω |
| VSWR | ≤1.5 (5800 MHz) |
| Maximum input power | 50 W |
| Polarization | LHCP or RHCP selectable |
Mechanical and environmental specifications
| Parameter | Value |
|---|---|
| Connector configurations | RPSMA / SMA / UFL / MMCX / MMCX-L |
| Antenna dimensions | 13 × (60±2) mm |
| Configuration weight | SMA: 7 g; MMCX: 3 g; UFL: 2 g |
| Radome material | ABS |
| Radome color | Black / white |
| Operating temperature | −40 to +60 °C |
| Rated wind velocity | 60 m/s |
| Packing | PE bag |
Additional information

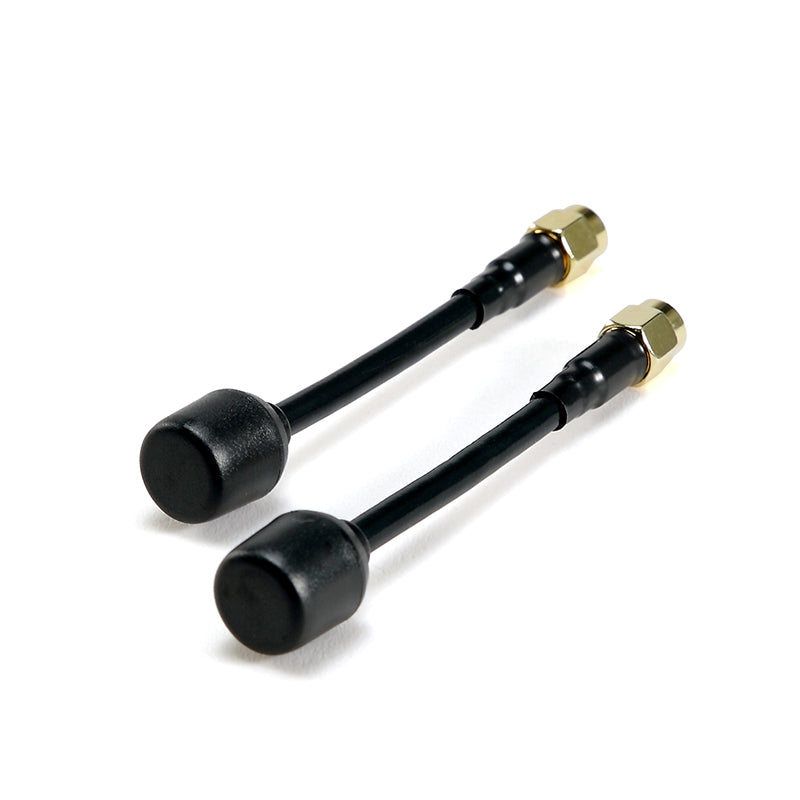

The photograph shows product appearance, not a supplied bundle. Polarization, connector and cable depend on the selected configuration.
Select LHCP or RHCP to match the transmit/receive polarization. State polarization, connector, cable length, color and quantity when requesting a quotation.
Standard MOQ: 1 unit. Typical sample lead time: 2 weeks; volume lead time: 4 weeks. Customized specifications and delivery are subject to order confirmation.
