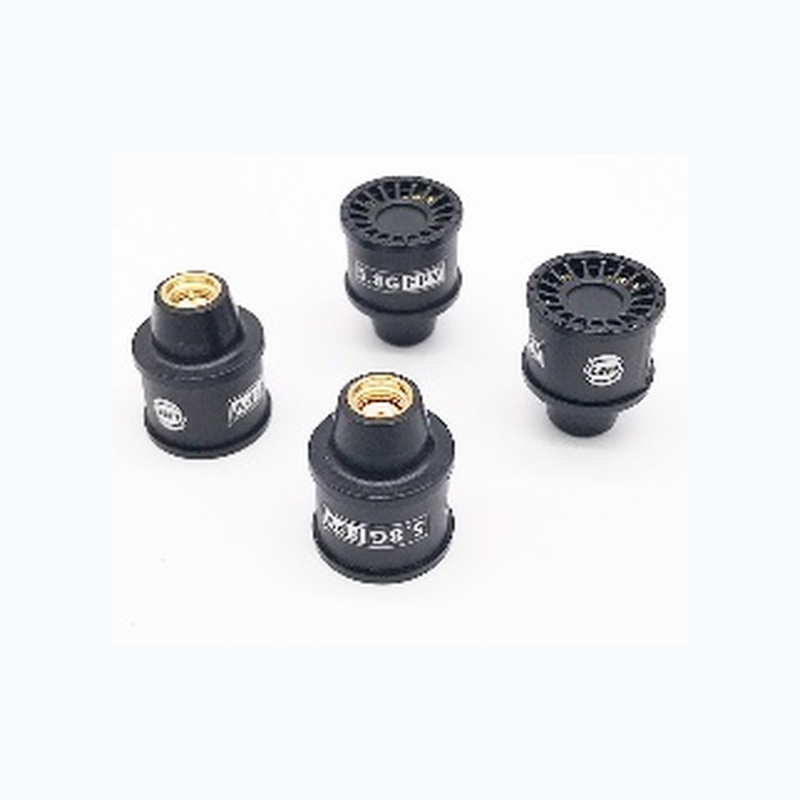

YC-A-COM-0002 | 5.8 GHz Compact Mushroom LHCP Antenna
Price on request
Request a quoteCompact 5.8 GHz LHCP communication antenna with a direct SMA-J connector. It covers 5200–6000 MHz, provides 2.5 dBi gain and suits equipment requiring a cable-free mushroom-style antenna.
Technical specifications
| Frequency range | 5200–6000 MHz |
|---|---|
| Polarization | LHCP |
| Gain | 2.5 dBi |
| Impedance | 50 Ω |
| VSWR at 5800 MHz | ≤1.3 |
| Max. input power | 50 W |
| Connector | SMA-J |
| Dimensions | Φ17.5 × 22 mm |
| Weight | 5.2 g |
| Radome | ABS; black or red |
| Operating temperature | −40 to +60 °C |
Configuration notes
The source configuration is cable-free with a direct SMA connector. Confirm housing color and device fit before ordering.
Ordering and delivery
- Standard MOQ: 1 unit
- Typical sample lead time: 2 weeks
- Typical volume-production lead time: 4 weeks
Final configuration and schedule are confirmed in the quotation.
