YC-TI-CT-0003 | 4992A Wireless Integrated Tester
Price on request
Request a quoteProduct overview
4992A combines RF generation, audio analysis, demodulation measurements and cable testing in a handheld instrument for radio and walkie-talkie production checks and field maintenance. Dual sources cover 2-1000 MHz and 2-400 MHz, with independent or combined output according to the selected port.
General specifications and interfaces
| Parameter | Specification and conditions |
|---|---|
| Manufacturer model | 4992A |
| Form factor | Handheld |
| Display | 7-inch color touchscreen; backlight adjusts to ambient brightness |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -40°C to +70°C |
| Nominal dimensions W×H×D | (292.5±2.5) × (192.5±2.5) × (67±1.5) mm; excluding handle and similar parts, rear support closed |
| Weight | <2.6 kg |
| Power consumption | ≤25 W; excludes battery charging |
| Adapter input | 100-240 V AC, 50/60 Hz |
| DC supply | 12-18 V without battery; 15-18 V with battery; minimum current 4 A |
| Internal battery | Nominal voltage 10.8 V; rechargeable lithium-ion battery |
| RF input/output ports | ANT and T/R, both BNC connectors |
| RF output port | SWR |
| Audio output port | AUDIO OUT |
| Audio and DVM input port | AUDIO IN/DVM |
| GPS signal input port | GPS |
| Audio box interface | AUDIO SET |
| Data and control interfaces | LAN, Mini USB, USB A; MicroSD card slot |
RF signal sources
| Parameter | Specification and conditions |
|---|---|
| Source 1 frequency range | 2-1000 MHz |
| Source 2 frequency range | 2-400 MHz; ANT port |
| Frequency resolution | 1 Hz |
| Source 1 output SWR | -5 to -55 dBm |
| Source 1 output ANT | -5 to -100 dBm |
| Source 1 output T/R | -50 to -125 dBm |
| Source 2 output ANT | 0 to -100 dBm |
| SSB phase noise | ≤-95 dBc/Hz; 20 kHz offset |
| Harmonic spurious | ≤-30 dBc |
| Internal AM modulation frequency | 30 Hz-5 kHz; settable to 20 Hz-20 kHz |
| Internal AM depth range | 0-100% |
| Internal AM accuracy | ±(5%×modulation depth+2%); 150 Hz-5 kHz modulation rate, 10%-90% depth |
| External AM audio input level | 0.05-3 Vp |
| External AM microphone input level | 20-350 mVrms |
| Internal FM modulation frequency | 30 Hz-5 kHz; settable to 20 Hz-20 kHz |
| Internal FM maximum deviation | 100 kHz |
| Internal FM accuracy | ±5%; 100 kHz deviation, 150 Hz-5 kHz modulation rate |
| External FM audio input frequency | 300 Hz-5 kHz |
| External FM microphone input frequency | 300 Hz-3 kHz |
Audio signal source
| Parameter | Specification and conditions |
|---|---|
| Frequency range | 20 Hz-20 kHz |
| Output level | 20 mVrms-1.57 Vrms |
| Output level accuracy | ±(5%×output level+5 mV) |
| Harmonic distortion | <3%; 1 kHz, 1 Vrms |
| Output modes | Single tone, dual tone, noise, single tone plus noise |
RF measurements
| Parameter | Specification and conditions |
|---|---|
| RF power meter | T/R wideband RF input; 10-43 dBm (0.01-20 W); accuracy ±1 dB (20-43 dBm); internal attenuator |
| RF frequency error meter | Capture range 200 kHz; resolution 1 Hz |
| Received signal strength meter | T/R port -50 to +43 dBm; ANT port -110 to -10 dBm; accuracy ±3 dB |
Demodulation measurements
| Parameter | Specification and conditions |
|---|---|
| AM depth meter | 5%-100%; accuracy ±5%, 1 kHz modulation rate, 30%-90% modulation, 3 kHz LPF |
| FM deviation meter | 500 Hz-100 kHz; accuracy ±5%, 1-10 kHz deviation, 150 Hz-1 kHz modulation rate |
Spectrum analysis optional function
| Parameter | Specification and conditions |
|---|---|
| Frequency range | 2-1000 MHz |
| Span | 10 kHz-998 MHz |
| Reference level | -80 to +50 dBm |
| Resolution bandwidth | 10 Hz-30 kHz; 1, 3, 10 steps |
| Displayed average noise level | -120 dBm; typical, 10 kHz bandwidth, ANT port |
Audio measurements
| Parameter | Specification and conditions |
|---|---|
| Audio frequency range | 20 Hz-20 kHz |
| Audio frequency accuracy | ±1 Hz |
| Audio input level | 20 mVp-3 Vp (range 1); 2-30 Vp (range 2); accuracy ±(5%×reading+5 mV) (range 1) |
| THD accuracy | ±(5%×reading+0.1%); within 1%-20% |
| SINAD accuracy | ±1.5 dB; within 8-35 dB |
Digital voltmeter
| Parameter | Specification and conditions |
|---|---|
| Input frequency | DC-20 kHz |
| Coupling | AC, DC |
| Input level | 20 mVp-3 Vp (range 1); 2-30 Vp (range 2) |
| Accuracy | ±10%; within 20 mVp-3 Vp |
Oscilloscope optional function
| Parameter | Specification and conditions |
|---|---|
| Signal sources | External audio, DVM input, demodulated signal |
| Horizontal range | 0.2-50 ms/div; 1, 2, 5 sequence |
| Horizontal accuracy | ±3% |
| Vertical range | 10 mV-20 V/div; 1, 2, 5 sequence |
| Vertical accuracy | ±10%; full range |
| Bandwidth | 20 kHz |
Cable and antenna feeder testing
| Parameter | Specification and conditions |
|---|---|
| Test types | Standing wave ratio SWR, return loss RL, cable loss LOSS, distance to fault DTF |
| DTF accuracy | ±10% |
| Number of markers | 3 |
Functions and applications
| Parameter | Specification and conditions |
|---|---|
| Dual RF sources | Output powers are independently controlled; independent or combined outputs for intermodulation and out-of-band rejection tests |
| Modulation source | Internal and external AM/FM modulation; modulation baseband and audio generation can operate simultaneously |
| Instrument state settings | Save and recall custom states and frequently used input data |
| Limit indication | Set acceptable test ranges; background colors indicate results above or below alarm limits |
| Operation support | Chinese and English interfaces and online help; English configuration is listed as option 4992A-003 |
| Field applications | Radio equipment installation, adjustment and maintenance, plus antenna feeder fault isolation |
| Production applications | Radio and walkie-talkie transmitter/receiver performance testing and AM sensitivity testing |
Options and services
| Option code | Description | Configuration status |
|---|---|---|
| 4992A-003 | English version option | Software or interface configuration |
| 4992A-S01 | Oscilloscope function | Function option |
| 4992A-S02 | Spectrum analysis function | Function option |
| 4992A-H01 | Chinese user manual | Optional documentation |
| 4992A-H02 | English user manual | Optional documentation |
| 4992A-H03 | Chinese programming manual | Optional documentation |
| 4992A-H04 | English programming manual | Optional documentation |
| 4992A-H05 | 20 dB attenuator 50 W | Optional accessory |
| 4992A-H06 | 20 dB attenuator 150 W | Optional accessory |
| 4992A-H07 | 20 dB attenuator 200 W | Optional accessory |
| 4992A-H08 | Audio box assembly | Optional accessory |
| 4992A-H11 | BNC/SMA adapter | Optional accessory |
| 4992A-H12 | N/BNC adapter | Optional accessory |
| 4992A-H13 | High-impedance passive oscilloscope probe | Optional accessory |
| 4992A-H14 | External GPS antenna | Optional accessory |
| 4992A-H15 | BNC cable 80 cm | Optional accessory |
| 4992A-H16 | Purple Category 5e network cable | Optional accessory |
| 4992A-H17 | MicroSD Class4 | Optional accessory |
| 4992A-H18 | Rechargeable lithium-ion battery pack | Optional accessory |
| 4992A-H19 | Power adapter | Optional accessory |
| 4992A-H20 | Functional backpack | Optional accessory |
| 4992A-H21 | Two-strap carrying bag | Optional accessory |
| 4992A-H22 | Protective instrument transport case | Optional accessory |
| 4992A-JL | Metrology service | Service scope and deliverables confirmed in quotation |
| 4992A-001-EWT1 | 1-year warranty extension beyond the standard warranty | Applicable region and terms confirmed in quotation |
Included accessories
| Parameter | Specification and conditions |
|---|---|
| Power cord | Included according to selected configuration |
| Rechargeable lithium-ion battery | Included according to selected configuration |
| Power adapter | Included according to selected configuration |
| Quick start guide | Included according to selected configuration |
| Product quality certificate | Included product documentation |
| Supplied disc | Included media |
| USB cable | Included according to selected configuration |
| Vehicle charger | Included according to selected configuration |
Compatible coaxial calibration kits
| Calibration-kit model | Calibration-kit frequency range | Configuration |
|---|---|---|
| 20201A | DC-9 GHz | Coaxial calibration kit, ordered separately |
| 20201B | DC-9 GHz | Coaxial calibration kit, ordered separately |
Other notes
- Spectrum analysis 4992A-S02 and oscilloscope 4992A-S01 are optional functions, not default features on every unit. English interface, external accessories, metrology and extended warranty services depend on the ordered configuration.
- 20 W is the upper limit of the listed internal T/R power-meter measurement range. 50 W, 150 W and 200 W are power ratings of external attenuator options, not direct instrument-port input ratings. Confirm attenuator, connection and compensation settings for high-power tests.
- Power-meter accuracy ±1 dB applies only within 20-43 dBm. Noise level -120 dBm is typical at the ANT port with 10 kHz bandwidth, not a guarantee under all test conditions.
- Vp and mVp denote peak voltage; Vrms and mVrms denote RMS voltage. Ranges, ports and applicable accuracy conditions are not interchangeable. Dimensions exclude the handle and similar parts, with the rear support closed.
- DC-9 GHz for 20201A and 20201B is the calibration-kit frequency range, not an extension of the 4992A source 1 or source 2 range. Compatible interfaces and connection accessories must be selected separately.
- Some battery and adapter entries appear both in the option list and the included accessories. Whether they are extra units or spares depends on the order list; do not count them twice. Individual accessory quantities are not specified in the catalog.

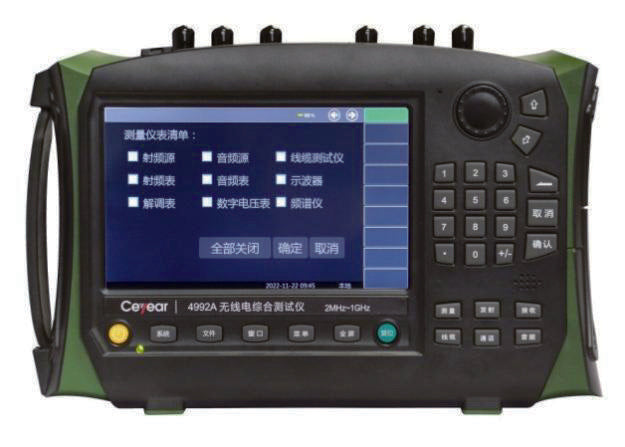

- The image shows a representative 4992A instrument configuration. Function options, accessories and screen displays depend on the ordered configuration. Provide device type, frequency band, test items, interfaces, power, configuration and quantity; lead time and services are subject to quotation.
