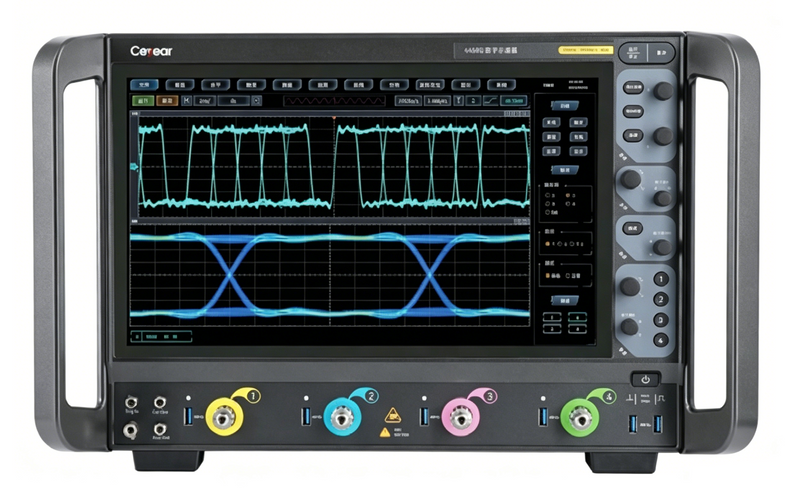

YC-TI-OSC-0001 | 4458 Series Digital Oscilloscope (8/10/13 GHz)
Price on request
Request a quoteTest & measurement instruments
The 4458 Series Digital Oscilloscope provides four analog channels. Models 4458N, 4458P and 4458Q offer 8, 10 and 13 GHz analog bandwidth respectively for high-speed signal acquisition and analysis.
Key specifications
| 4458N bandwidth | 8 GHz (50 Ω) |
|---|---|
| 4458P bandwidth | 10 GHz (50 Ω) |
| 4458Q bandwidth | 13 GHz (50 Ω) |
| Analog channels | 4 |
| Maximum sample rate | 40 GSa/s (all channels) |
| Maximum memory depth | 4 Gpts (all channels) |
| Vertical resolution | 8 bit |
| Display | 15.6-inch capacitive touchscreen |
The 8, 10 and 13 GHz bandwidths belong to different models; they are not three switchable settings in one instrument. Logic, bus, eye-diagram and jitter analysis depend on options.
Reseller product. Contact Yanchuan to confirm model, probes, quotation and lead time.
