YC-TI-OSC-0005 | 4454 Series Digital Oscilloscope
Price on request
Request a quoteProduct overview
Ceyear 4454 four-channel digital oscilloscopes offer 200/350/500 MHz bandwidth, 8 GSa/s with half the channels enabled and 4 GSa/s with all channels enabled. Five standard bus-analysis protocols and an 11.6-inch touchscreen support electronic development, debugging and automated testing.
Key functions
- Digital-phosphor intensity-graded display uses color levels to indicate event occurrence and help observe intermittent waveforms.
- Trigger types include edge, pulse width, video, slope, timeout, runt and logic.
- Standard automatic bus triggering and analysis for I²C, RS232, SPI, CAN and LIN; LAN remote control and WebControl.
Models and core specifications
| Manufacturer model | Bandwidth | Analog channels |
|---|---|---|
| 4454B | 200 MHz | 4 |
| 4454C | 350 MHz | 4 |
| 4454D | 500 MHz | 4 |
| Parameter | Specification |
|---|---|
| Sample rate | 8 GSa/s (half the channels); 4 GSa/s (all channels) |
| Memory depth | 2 Gpts (single channel); 500 Mpts (four channels) |
| Vertical resolution | 8 bit |
| Waveform capture rate | Fast acquisition mode: 500,000 waveforms/s; standard mode: 200,000 waveforms/s |
| Standard bus triggering and analysis | I²C, RS232, SPI, CAN, LIN |
Detailed specifications and accessories
Vertical input specifications
| Parameter | Specification |
|---|---|
| Vertical sensitivity range (50 Ω) | 1 mV/div–1 V/div |
| Vertical sensitivity range (1 MΩ) | 1 mV/div–10 V/div |
| Vertical gain accuracy | ±3% (≥10 mV/div); ±5% (<10 mV/div) |
Display, interfaces and mechanical specifications
| Parameter | Specification |
|---|---|
| Display type | 11.6-inch color LCD with capacitive touchscreen |
| Display resolution | 1366×768 |
| Interfaces and remote control | USB, LAN, HDMI; LAN remote control and WebControl |
| Dimensions (W×H×D) | (372±2.5)×(230±2.5)×(120±2.5) mm |
| Weight | ≤4.5 kg |
Hardware options
| Option model | Description |
|---|---|
| 4454-H04 | Rack-mount kit |
| 4454-H05 | Aluminum-alloy transport case |
Supplied accessories
| Accessory | Quantity |
|---|---|
| High-impedance probes | 4 |
| Power cable | 1 |
| Quick-start guide | 1 copy |
| Disc | 1 |
| LAN cable | 1 |
| USB cable | 1 |
Application and selection notes
Sample rate and memory depth depend on active-channel configuration. The 500,000 waveforms/s figure applies to fast acquisition mode; standard mode provides 200,000 waveforms/s. Choose settings according to channel count, record length and capture mode.
Bus analysis is standard. The rack-mount kit and transport case are optional. Four high-impedance probes are supplied; the probe model and measurement range are specified in the configuration list.

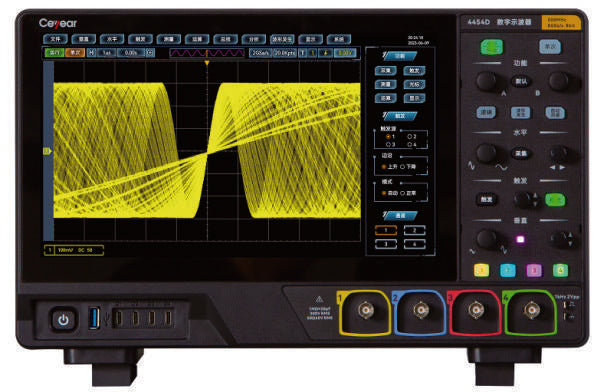

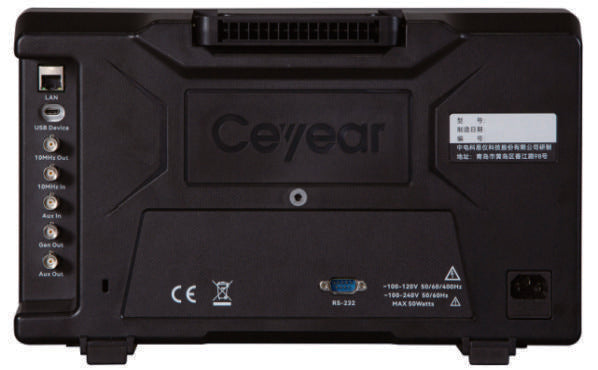

Images show a four-channel 4454 series configuration and rear interfaces; the delivered model and options are defined by the quotation.
Ordering and delivery
Typical MOQ is 1 unit; configuration and delivery are subject to the formal quotation.
