YC-TI-SA-0005 | 4026 Series Spectrum Analyzer
Price on request
Request a quoteTest & measurement instruments

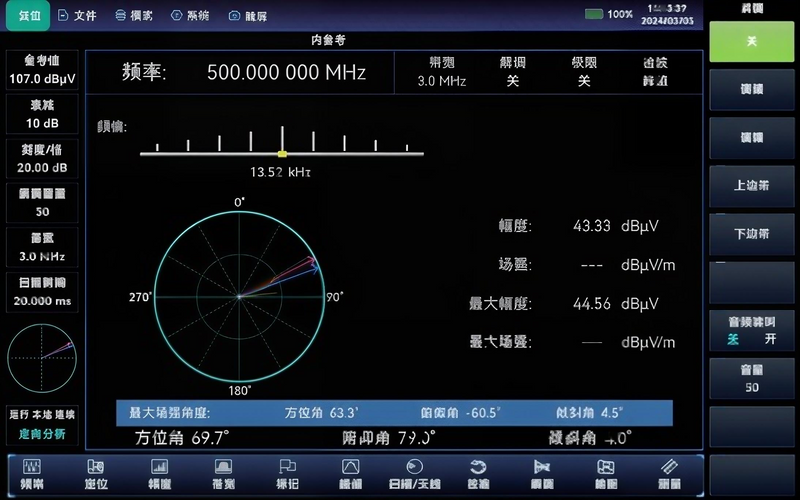

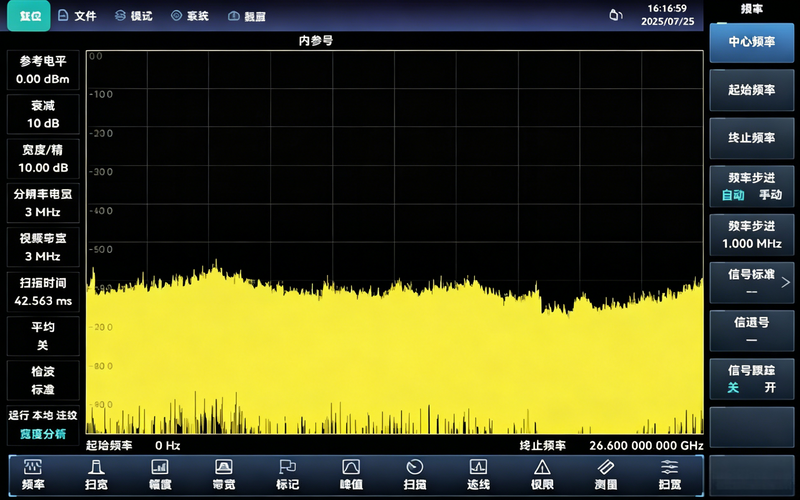

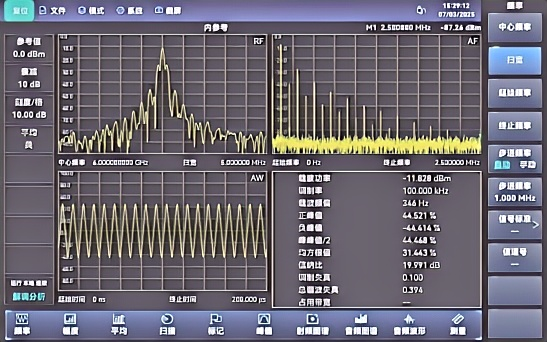

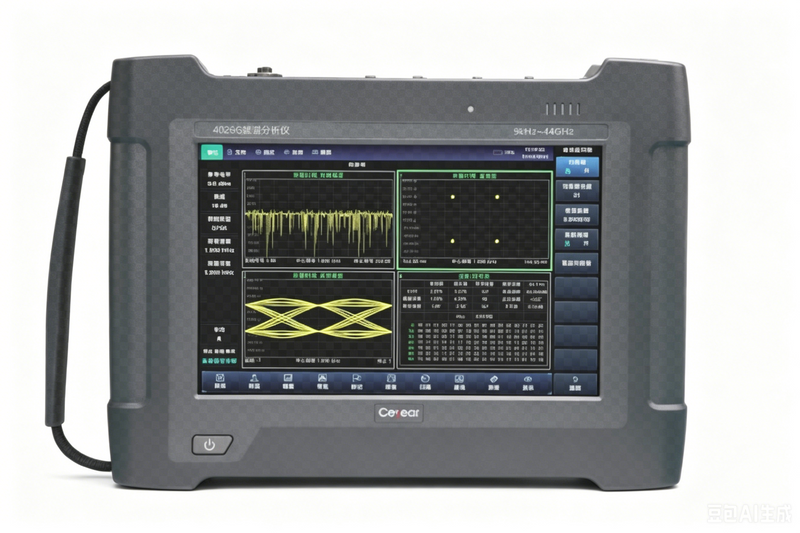

The portable 4026 Series Spectrum Analyzer supports field RF measurements, radio monitoring and interference investigation. Models 4026D, 4026E and 4026G have different upper frequency limits; real-time spectrum and extended analysis functions depend on options.
Key specifications
| 4026D frequency range | 9 kHz–20 GHz |
|---|---|
| 4026E frequency range | 9 kHz–26.5 GHz |
| 4026G frequency range | 9 kHz–44 GHz |
| Single-sideband phase noise | ≤ −110 dBc/Hz (1 GHz carrier, 10 kHz offset) |
| Real-time analysis bandwidth | 40 MHz or 120 MHz (option) |
| Display | 10.1-inch touchscreen |
| Operating temperature | −20 °C to +55 °C |
| Weight with battery | 4026D/E ≤ 3.3 kg; 4026G ≤ 3.6 kg |
Measurement modes, accessories and interfaces depend on the selected model and options.
Reseller product. Contact Yanchuan to confirm configuration, quotation and lead time.
