YC-A-COM-0039 | 4.8–6 GHz Circularly Polarized Video-Link Antenna
Price on request
Request a quoteThis video-link antenna covers 4800–6000 MHz with 5 dBi gain, 50 Ω input impedance and 50 W maximum input power. Select LHCP or RHCP circular polarization and an SMA or RP-SMA connector. A black ABS radome is used. Match the polarization and connector configuration to wireless video equipment operating in the specified frequency range.
Key specifications
| Parameter | Value |
|---|---|
| Frequency range | 4800–6000 MHz |
| Polarization | LHCP or RHCP circular polarization, selectable |
| Gain | 5 dBi |
| Input impedance | 50 Ω |
| Maximum input power | 50 W |
| Connector options | SMA / RP-SMA |
Mechanical and environmental specifications
| Parameter | Value |
|---|---|
| Antenna dimensions | 22 × (150±2) mm |
| Weight (SMA configuration) | 13 g |
| Radome material | ABS |
| Color | Black |
| Operating temperature | −40–60 °C |
| Rated wind velocity | 60 m/s |
| Packaging | PE bag |
Notes
LHCP and RHCP are alternative configurations. Select the polarization to match the equipment and the counterpart antenna; this does not imply simultaneous LHCP and RHCP operation.

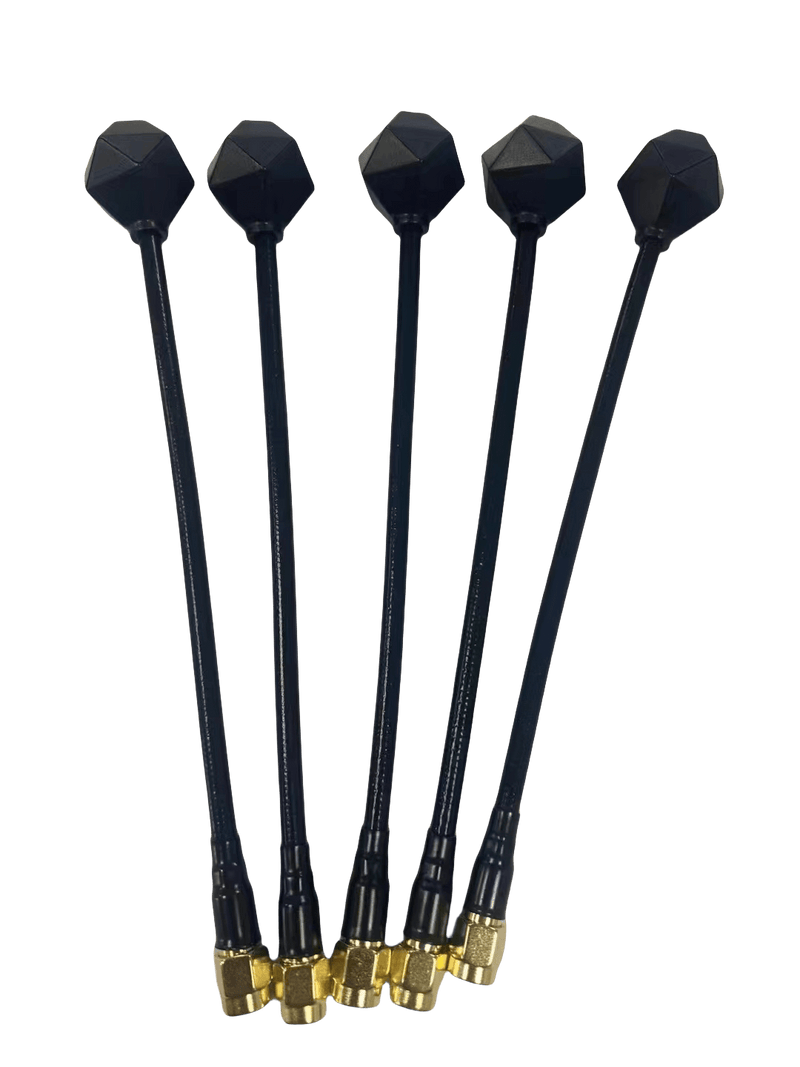

The photograph displays multiple units and does not indicate a standard kit. Quantity, polarization and connector configuration are confirmed with the order.
Standard MOQ is 1 unit. Typical sampling and bulk lead times are approximately 2 and 4 weeks respectively, subject to specification review and order confirmation.
For a quotation, specify the operating band, polarization, connector, quantity and application.
