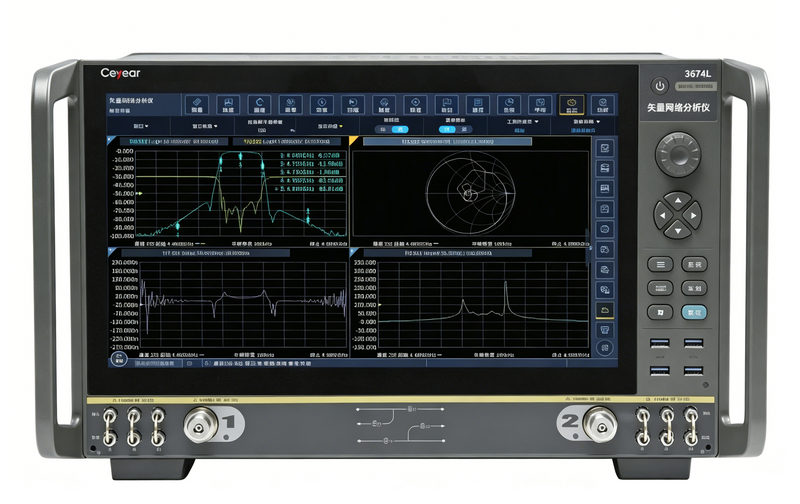

YC-TI-VNA-0001 | 3674 Series Vector Network Analyzer
Price on request
Request a quoteTest & measurement instruments
The 3674 Series Vector Network Analyzer supports network-parameter measurements for antennas, RF components, microwave assemblies and high-speed interconnects. The series includes multiple frequency and software configurations; select a model for the device under test and measurement task.
Key specifications
| Series frequency range | 500 Hz or 10 MHz lower limit; model-dependent upper limit from 9 to 120 GHz |
|---|---|
| IF bandwidth | 1 Hz–35 MHz |
| Maximum measurement points | 210,001 |
| Dynamic range | Up to 140 dB under specified model and test conditions |
| Display | 15.6-inch multi-touchscreen |
| Extended measurements | Pulsed S-parameters, frequency converters, noise figure, signal integrity and automatic fixture removal, depending on software configuration |
Models from 3674B through 3674QA have different frequency ranges. Confirm frequency coverage, ports, accessories and software for the selected configuration.
Reseller product. Contact Yanchuan to confirm configuration, quotation and lead time.
