YC-TI-VNA-0003 | 3671 Series Vector Network Analyzer
Price on request
Request a quoteRequest configuration and quote
Product overview
The 3671 series offers two-port and four-port configurations. Models cover 100 kHz–14/20/26.5 GHz or 10 MHz–43.5/67 GHz for RF/microwave S-parameters, magnitude, phase and group-delay measurements. Time-domain analysis, virtual eye diagrams, fixture removal and calibration accessories are configured as options. The 3671G also offers 40 GHz two-port and four-port configurations.
Models and configurations
| Model | Frequency range | Port configuration | Connector | Weight | Dimensions (W × H × D) |
|---|---|---|---|---|---|
| 3671C | 100 kHz–14 GHz | Two ports as standard; 3671C-400: four ports | 3.5 mm NMD male | <24 kg | (516±4)×(279±2.5)×(493±4) mm |
| 3671D | 100 kHz–20 GHz | Two ports as standard; 3671D-400: four ports | 3.5 mm NMD male | <24 kg | (516±4)×(279±2.5)×(493±4) mm |
| 3671E | 100 kHz–26.5 GHz | Two ports as standard; 3671E-400: four ports | 3.5 mm NMD male | <24 kg | (516±4)×(279±2.5)×(493±4) mm |
| 3671G | 10 MHz–43.5 GHz (standard / -400); 10 MHz–40 GHz (-210 / -410) | Two ports as standard; -400: four ports; -210: 40 GHz / two ports; -410: 40 GHz / four ports | 2.4 mm NMD male | <26 kg | two ports: (516±4)×(279±2.5)×(493±4) mm; four ports: (516±4)×(279±2.5)×(543±4) mm |
| 3671L | 10 MHz–67 GHz | Two ports as standard; 3671L-400: four ports | 1.85 mm NMD male | <30 kg | (474±4)×(280±2.5)×(533±4) mm |
Common specifications
| Parameter | Specification |
|---|---|
| Frequency resolution | 0.1 Hz |
| Frequency accuracy | ±1×10⁻⁷ (23°C±3°C) |
| IF bandwidth | 1 Hz–30 MHz; steps 1, 2, 3, 5, 7 |
| Maximum sweep points | 200001 |
| System impedance | 50 Ω |
| Peripheral interfaces | USB, GPIB, VGA, LAN, HDMI |
| Display | 12.1-inch; 16:10; 1280×800; capacitive multitouch |
| Windows and channels | Up to 32 windows, 64 channels, 16 traces per window |
| Power input | 100–240 VAC; 50/60 Hz, automatic selection |
| Maximum power consumption | 400 W |
Configuration-specific output power and dynamic range
| Configuration | Parameter | Frequency-dependent values |
|---|---|---|
| 3671C/D/E two ports | Maximum output power | 5 dBm (100 kHz–10 MHz); 15 dBm (10 MHz–4 GHz); 15 dBm (4–10 GHz); 10 dBm (10–14 GHz); 9 dBm (14–20 GHz); 6 dBm (20–24 GHz); 2 dBm (24–26.5 GHz) |
| 3671C/D/E two ports | System dynamic range (10 Hz IF, RMS) | 102 dB (100 kHz–10 MHz); 132 dB (10 MHz–4 GHz); 133 dB (4–10 GHz); 125 dB (10–14 GHz); 124 dB (14–20 GHz); 120 dB (20–24 GHz); 115 dB (24–26.5 GHz) |
| 3671C/D/E four ports | Maximum output power | 3 dBm (100 kHz–10 MHz); 13 dBm (10 MHz–4 GHz); 10 dBm (4–10 GHz); 4 dBm (10–14 GHz); 3 dBm (14–20 GHz); -2 dBm (20–24 GHz); -4 dBm (24–26.5 GHz) |
| 3671C/D/E four ports | System dynamic range (10 Hz IF, RMS) | 102 dB (100 kHz–10 MHz); 132 dB (10 MHz–4 GHz); 130 dB (4–10 GHz); 120 dB (10–14 GHz); 119 dB (14–20 GHz); 115 dB (20–24 GHz); 110 dB (24–26.5 GHz) |
| 3671G standard / -400 (43.5 GHz) | Maximum output power | 12 dBm (10–50 MHz); 13 dBm (50–250 MHz); 13 dBm (250 MHz–1 GHz); 13 dBm (1–10 GHz); 10 dBm (10–20 GHz); 8 dBm (20–35 GHz); 3 dBm (35–43.5 GHz) |
| 3671G standard / -400 (43.5 GHz) | System dynamic range (10 Hz IF, RMS) | 90 dB (10–50 MHz); 98 dB (50–250 MHz); 115 dB (250 MHz–1 GHz); 128 dB (1–10 GHz); 122 dB (10–20 GHz); 118 dB (20–35 GHz); 110 dB (35–43.5 GHz) |
| 3671G -210 / -410 (40 GHz) | Maximum output power | 10 dBm (10–50 MHz); 13 dBm (50–250 MHz); 13 dBm (250 MHz–1 GHz); 13 dBm (1–10 GHz); 10 dBm (10–20 GHz); 6 dBm (20–35 GHz); 3 dBm (35–40 GHz) |
| 3671G -210 / -410 (40 GHz) | System dynamic range (10 Hz IF, RMS) | 120 dB (10–50 MHz); 120 dB (50–250 MHz); 125 dB (250 MHz–1 GHz); 128 dB (1–10 GHz); 122 dB (10–20 GHz); 113 dB (20–35 GHz); 108 dB (35–40 GHz) |
| 3671L two ports / four ports | Maximum output power | 12 dBm (10–50 MHz); 13 dBm (50–250 MHz); 13 dBm (250 MHz–1 GHz); 13 dBm (1–10 GHz); 10 dBm (10–40 GHz); 10 dBm (40–60 GHz); 8 dBm (60–67 GHz) |
| 3671L two ports / four ports | System dynamic range (10 Hz IF, RMS) | 90 dB (10–50 MHz); 98 dB (50–250 MHz); 115 dB (250 MHz–1 GHz); 128 dB (1–10 GHz); 122 dB (10–20 GHz); 118 dB (20–50 GHz); 110 dB (50–67 GHz) |
Matching and trace noise
| Parameter | 3671C/D/E | 3671G | 3671L |
|---|---|---|---|
| Minimum output power (typical) | -60 dBm | -60 dBm | -50 dBm |
| Power sweep range (typical) | ≥60 dB | ≥63 dB | ≥55 dB |
| Effective directivity | 48 dB (100 kHz–2 GHz); 44 dB (2–20 GHz); 44 dB (20–26.5 GHz) | 42 dB (10 MHz–2 GHz); 45 dB (2–20 GHz); 38 dB (20–43.5 GHz) | 35 dB (10 MHz–2 GHz); 40 dB (2–50 GHz); 35 dB (50–67 GHz) |
| Effective source match | 40 dB (100 kHz–2 GHz); 30 dB (2–20 GHz); 30 dB (20–26.5 GHz) | 40 dB (10 MHz–2 GHz); 30 dB (2–20 GHz); 30 dB (20–43.5 GHz) | 34 dB (10 MHz–2 GHz); 28 dB (2–50 GHz); 27 dB (50–67 GHz) |
| Effective load match | 48 dB (100 kHz–2 GHz); 44 dB (2–20 GHz); 44 dB (20–26.5 GHz) | 42 dB (10 MHz–2 GHz); 45 dB (2–20 GHz); 36 dB (20–43.5 GHz) | 35 dB (10 MHz–2 GHz); 36 dB (2–50 GHz); 33 dB (50–67 GHz) |
| Amplitude trace noise | 0.010 dB rms (100 kHz–50 MHz); 0.005 dB rms (50–500 MHz); 0.001 dB rms (500 MHz–14 GHz); 0.001 dB rms (14–20 GHz); 0.002 dB rms (20–26.5 GHz) | 0.1000 dB rms (10–50 MHz); 0.0200 dB rms (50–100 MHz); 0.0200 dB rms (100–500 MHz); 0.0030 dB rms (500 MHz–26.5 GHz); 0.0030 dB rms (26.5–43.5 GHz) | 0.0500 dB rms (10–50 MHz); 0.0030 dB rms (50–500 MHz); 0.0020 dB rms (500 MHz–26.5 GHz); 0.0030 dB rms (26.5–50 GHz); 0.0090 dB rms (50–67 GHz) |
| Phase trace noise | 0.100 deg rms (100 kHz–50 MHz); 0.040 deg rms (50–500 MHz); 0.030 deg rms (500 MHz–14 GHz); 0.040 deg rms (14–20 GHz); 0.040 deg rms (20–26.5 GHz) | 1.000 deg rms (10–50 MHz); 1.000 deg rms (50–100 MHz); 0.500 deg rms (100–500 MHz); 0.020 deg rms (500 MHz–26.5 GHz); 0.030 deg rms (26.5–43.5 GHz) | 0.400 deg rms (10–50 MHz); 0.020 deg rms (50–500 MHz); 0.020 deg rms (500 MHz–26.5 GHz); 0.030 deg rms (26.5–50 GHz); 0.040 deg rms (50–67 GHz) |
Functions and applications
| Function | Description |
|---|---|
| Calibration | Guided automation, through response, response/isolation, one-port, enhanced response, full two-port SOLT, TRL and ECal. Calibration accessories depend on configuration. |
| Display formats | Log/linear magnitude, SWR, phase, group delay, Smith chart and polar plot. |
| Languages | Chinese/English operating interface; English front/rear panels and OS require option 3671-006. |
| Time domain | 3671-S10: frequency/time-domain switching and discontinuity analysis for devices, fixtures and cables. |
| Advanced time domain | 3671-S11: TDR impedance, near/far-end crosstalk and time/frequency-domain data. |
| Virtual eye diagrams | S-parameter and simulated-pattern convolution, template Pass/Fail, jitter/noise and pre-emphasis/equalization simulation; not direct oscilloscope acquisition. |
| AFR fixture removal | 3671-S07: fixture extraction, storage and de-embedding; single-ended/differential fixtures, through/open/short standards, balanced parameters and four-port de-embedding. |
| Signal integrity | 3671-S05: frequency-domain, time-domain TDR, crosstalk and report conversion. |
| Data management | 3671-S17: automatic saving, management and data reports. |
| Fast CW sweep | Option 3671-S118 for efficient batch data access in automated testing. |
Options and accessories
| Model / option | Name | Description |
|---|---|---|
| 3671-006 | English option | English front/rear panels and OS. |
| 3671-011 | 31101 N-type 50Ω mechanical calibration kit | DC–18 GHz |
| 3671-013 | 31121 3.5mm mechanical calibration kit | DC–26.5 GHz |
| 3671-014 | 20202 3.5mm mechanical calibration kit | DC–9 GHz |
| 3671-016 | 31123A 2.4mm mechanical calibration kit | DC–50 GHz |
| 3671-017 | 20209FB 2.92mm mechanical calibration kit | DC–40 GHz |
| 3671-025 | 87302AZ N/N-JJ cable | N-type male/male; approx. 60 cm |
| 3671-026 | 87302BA N/N-KJ cable | N-type female/male; approx. 60 cm |
| 3671-027 | 87302SR 2.92/2.92-KJ cable | 2.92mm female/male; flexible economy cable; approx. 60 cm |
| 3671-028 | 87302SS 2.92/2.92-KK cable | 2.92mm female/female; flexible economy cable; approx. 60 cm |
| 3671-029 | 87308SR NMD2.92/2.92-KJ test cable | 2.92mm male test end; domestic amplitude/phase-stable cable; approx. 63 cm |
| 3671-030 | 87308SS NMD2.92/2.92-KK test cable | 2.92mm female test end; domestic amplitude/phase-stable cable; approx. 63 cm |
| 3671-031 | FB0HA0HB025.0 3.5mm Gore test cable | 3.5mm male test end; for 3671C/D/E |
| 3671-032 | FB0HA0HC025.0 3.5mm Gore test cable | 3.5mm female test end; for 3671C/D/E |
| 3671-035 | 3671N35M economy test cable | 3.5mm male; 63 cm; for 3671C/D/E |
| 3671-036 | 3671N35F economy test cable | 3.5mm female; 63 cm; for 3671C/D/E |
| 3671-037 | 3671N24M economy test cable | 2.4mm male; 63 cm; for 3671G |
| 3671-038 | 3671N24F economy test cable | 2.4mm female; 63 cm; for 3671G |
| 3671-041 | 3671NNM 3.5mm-N economy test cable | N-type male test end; 63 cm; for 3671C/D/E |
| 3671-042 | 3671NNF 3.5mm-N economy test cable | N-type female test end; 63 cm; for 3671C/D/E |
| 3671-047 | FE0BN0BM025.0 2.4mm Gore test cable | 2.4mm male test end; for 3671G |
| 3671-048 | FE0BN0BL025.0 2.4mm Gore test cable | 2.4mm female test end; for 3671G |
| 3671-062 | Rack-mount option | Rack mounting hardware. |
| 3671-070 | High-performance computing | Improves data throughput for automated tests and advanced time-domain analysis. |
| 3671-S05 | S-parameter signal-integrity analysis | Frequency-domain, time-domain TDR and crosstalk analysis; plots converted to reports. |
| 3671-S07 | AFR automatic fixture removal | Automatic fixture testing and removal for single-ended/balanced devices. |
| 3671-S10 | Time-domain measurement | Locates discontinuities in devices, fixtures and cables. |
| 3671-S11 | Advanced time-domain analysis | TDR impedance and virtual eye diagrams. |
| 3671-S17 | Test-data management | Automatic saving, management and data reports. |
| 3671-S118 | Fast CW sweep | Efficient batch data access. |
| 20209LB | 1.85mm coaxial mechanical calibration kit | DC–67 GHz |
| 20402D | Electronic calibration unit | 100 kHz–18 GHz; 2 ports; N-type; standard F/M, optional FF/MM |
| 20402E | Electronic calibration unit | 10 MHz–26.5 GHz; 2 ports; 3.5mm; standard F/M, optional FF/MM |
| 20402F | Electronic calibration unit | 10 MHz–40 GHz; 2 ports; 2.92mm; standard F/M, optional FF/MM |
| 20402H | Electronic calibration unit | 10 MHz–50 GHz; 2 ports; 2.4mm; standard F/M, optional FF/MM |
| 20402L | Electronic calibration unit | 10 MHz–67 GHz; 2 ports; 1.85mm; standard F/M, optional FF/MM |
| 20404D | Electronic calibration unit | 100 kHz–18 GHz; 4 ports; N-type; standard FFFF |
| 20404E | Electronic calibration unit | 10 MHz–26.5 GHz; 4 ports; 3.5mm; standard FFFF |
| 20404F | Electronic calibration unit | 10 MHz–40 GHz; 4 ports; 2.92mm; standard FFFF |
| 20404H | Electronic calibration unit | 10 MHz–50 GHz; 4 ports; 2.4mm; standard FFFF |
| 20404L | Electronic calibration unit | 10 MHz–67 GHz; 4 ports; 1.85mm; standard FFFF |
| FF0CN0CM025.0 | 1.85mm Gore test cable | 1.85mm male test end; for 3671L |
| FF0CN0CL025.0 | 1.85mm Gore test cable | 1.85mm female test end; for 3671L |
| 87302NN | VNA test cable | NMD1.85–1.85(f); economy amplitude/phase-stable cable; for 3671L |
| 87302NM | VNA test cable | NMD1.85–1.85(m); economy amplitude/phase-stable cable; for 3671L |
| 87302NZ | Flexible test cable | 1.85mm female/female; for 3671L |
| 87302NY | Flexible test cable | 1.85mm female/male; for 3671L |
| 3671C-400 | Four-port option | 100 kHz–14 GHz |
| 3671D-400 | Four-port option | 100 kHz–20 GHz |
| 3671E-400 | Four-port option | 100 kHz–26.5 GHz |
| 3671G-400 | Four-port option | 10 MHz–43.5 GHz |
| 3671G-210 | 40GHz two-port option | 10 MHz–40 GHz; improved low-frequency dynamic range |
| 3671G-410 | 40GHz four-port option | 10 MHz–40 GHz; improved low-frequency dynamic range |
| 3671L-400 | Four-port option | 10 MHz–67 GHz |
| 3671C-JL | Calibration service | 3671C metrological calibration and report |
| 3671D-JL | Calibration service | 3671D metrological calibration and report |
| 3671E-JL | Calibration service | 3671E metrological calibration and report |
| 3671G-JL | Calibration service | 3671G metrological calibration and report |
| 3671L-JL | Calibration service | 3671L metrological calibration and report |
| 3671C-EWT1 | 1-year warranty extension | Multiple items may extend duration; calibration excluded; one-way shipping only. Region/service scope subject to quotation and order. |
| 3671D-EWT1 | 1-year warranty extension | Multiple items may extend duration; calibration excluded; one-way shipping only. Region/service scope subject to quotation and order. |
| 3671E-EWT1 | 1-year warranty extension | Multiple items may extend duration; calibration excluded; one-way shipping only. Region/service scope subject to quotation and order. |
| 3671G-EWT1 | 1-year warranty extension | Multiple items may extend duration; calibration excluded; one-way shipping only. Region/service scope subject to quotation and order. |
| 3671L-EWT1 | 1-year warranty extension | Multiple items may extend duration; calibration excluded; one-way shipping only. Region/service scope subject to quotation and order. |
Included accessories
| Accessory | Quantity | Description |
|---|---|---|
| Power cord | 1 | Standard three-core |
| Mouse | 1 | |
| User manual | 1 | |
| Product conformity certificate | 1 | Factory conformity document |
| Aluminum-alloy case | 1 |
Configuration and ordering
- The model, port count and frequency options determine the operating range. High-frequency entries shared by C/D/E apply only to models covering that band. The 3671G standard/-400 covers 43.5 GHz; -210/-410 covers 40 GHz.
- System dynamic range is measured at 10 Hz IF bandwidth using RMS. Amplitude/phase trace noise is measured at -5 dBm excitation, 1 kHz IF bandwidth and through transmission.
- Minimum output power and power sweep range are typical values; account for power accuracy. Select maximum-output and dynamic-range values matching the port and frequency configuration.
- Options, calibration kits, test cables, calibration and extended-warranty services are selected in the quotation/order, not all included as standard. Confirm regions, duration and shipping responsibilities when requesting a quote. Warranty extensions exclude metrological calibration.
- Advanced time-domain virtual eye diagrams are simulated from S-parameters, not direct standalone-oscilloscope acquisition or bit-error-rate measurements.

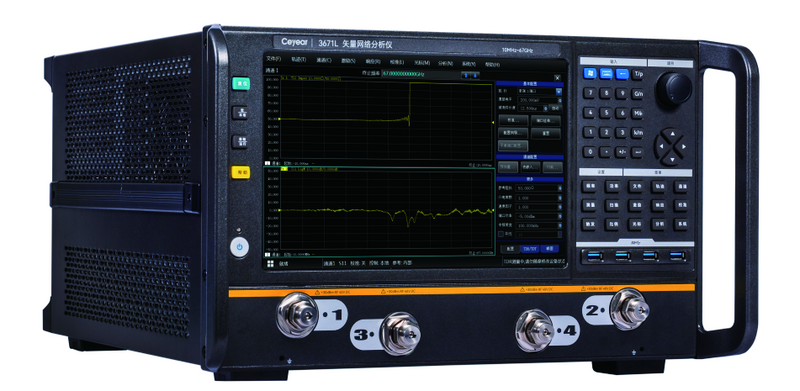

- The image shows a 3671L four-port configuration as a series representative. Not every model or quotation includes four ports; the model and delivery configuration are confirmed in the order.
