YC-TI-VNA-0005 | 3657 Series Vector Network Analyzer
Price on request
Request a quoteTest & Measurement · Vector Network Analyzers
The 3657 series vector network analyzers measure S-parameter magnitude, phase and group delay of filters, amplifiers, antennas and cables for wireless communications, automotive electronics, R&D and production testing. Choose a 5U desktop, 2U rackmount or USB/Thunderbolt form factor. Standard frequency coverage starts at 100 kHz, with model-specific upper limits of 4.5, 9, 14, 20 or 26.5 GHz. Request a quotation for the required frequency range, ports and options.
Discuss configuration and request a quote
Product image

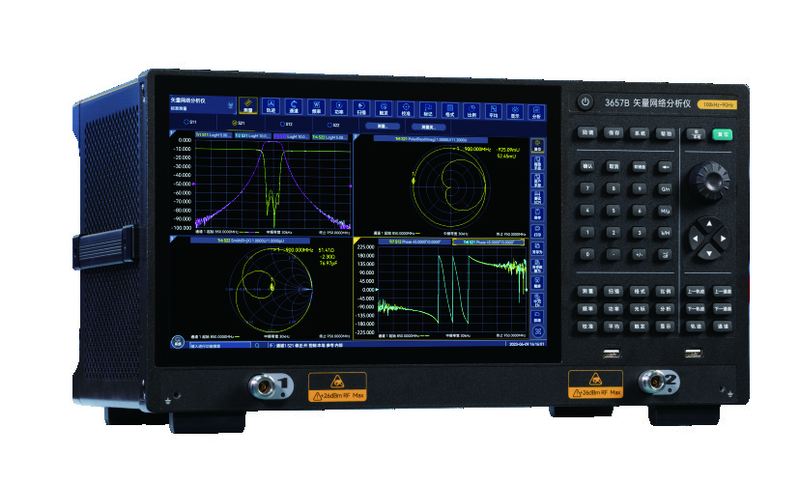

3657B desktop two-port appearance example; other models and optional configurations may differ.
Models and configurations
| Model | Form factor | Standard frequency range | Port configuration | Display/computer | Low-frequency extension |
|---|---|---|---|---|---|
| 3657A | 5U desktop | 100 kHz–4.5 GHz | 2 ports standard; -400 adds 4 ports | 12.1-inch touch display | -221 two-port or -421 four-port extension to 9 kHz; -421 requires -400 |
| 3657AM | 2U rackmount | 100 kHz–4.5 GHz | 2 ports standard; -400 adds 4 ports | No internal display; external display | -221 two-port or -421 four-port extension to 9 kHz; -421 requires -400 |
| 3657B | 5U desktop | 100 kHz–9 GHz | 2 ports standard; -400 adds 4 ports | 12.1-inch touch display | -221 two-port or -421 four-port extension to 9 kHz; -421 requires -400 |
| 3657BM | 2U rackmount | 100 kHz–9 GHz | 2 ports standard; -400 adds 4 ports | No internal display; external display | -221 two-port or -421 four-port extension to 9 kHz; -421 requires -400 |
| 3657C | 5U desktop | 100 kHz–14 GHz | 2 ports standard; -400 adds 4 ports | 12.1-inch touch display | — |
| 3657CM | 2U rackmount | 100 kHz–14 GHz | 2 ports standard; -400 adds 4 ports | No internal display; external display | — |
| 3657CU | USB/Thunderbolt | 100 kHz–14 GHz | 2 ports; no 4-port option | No CPU/display; Thunderbolt computer required | — |
| 3657D | 5U desktop | 100 kHz–20 GHz | 2 ports standard; -400 adds 4 ports | 12.1-inch touch display | — |
| 3657DM | 2U rackmount | 100 kHz–20 GHz | 2 ports standard; -400 adds 4 ports | No internal display; external display | — |
| 3657DU | USB/Thunderbolt | 100 kHz–20 GHz | 2 ports; no 4-port option | No CPU/display; Thunderbolt computer required | — |
| 3657E | 5U desktop | 100 kHz–26.5 GHz | 2 ports standard; -400 adds 4 ports | 12.1-inch touch display | — |
| 3657EM | 2U rackmount | 100 kHz–26.5 GHz | 2 ports standard; -400 adds 4 ports | No internal display; external display | — |
| 3657EU | USB/Thunderbolt | 100 kHz–26.5 GHz | 2 ports; no 4-port option | No CPU/display; Thunderbolt computer required | — |
Core specifications
| Parameter | Specification |
|---|---|
| Frequency resolution | 0.1 Hz |
| Frequency accuracy | ±5×10⁻⁶ (23°C±3°C) |
| IF bandwidth | 1 Hz–5 MHz, steps 1/2/3/5/7 |
| Magnitude display resolution | 0.001 dB/div |
| Phase display resolution | 0.001°/div |
| Port connectors | 3657A/B/AM/BM: N female; 3657C/D/E/CM/DM/EM/CU/DU/EU: 3.5 mm male; all 50 Ω |
| External interfaces | 3657A/B/C/D/E/AM/BM/CM/DM/EM: USB/LAN/HDMI/DP; 3657CU/DU/EU: USB/Thunderbolt |
| Display | 3657A/B/C/D/E: 12.1-inch high-resolution touch display; other models use an external display |
| AC power input | Single-phase 220 V AC, 50 Hz; or single-phase 110 V AC, 50/60 Hz |
| Power consumption | 3657A/B/AM/BM: ≤150 W；3657C/D/E/CM/DM/EM: ≤200 W；3657CU/DU/EU: ≤90 W |
| Weight | 3657A/B/C/D/E: <13.5 kg；3657AM/BM/CM/DM/EM: <12.5 kg；3657CU/DU/EU: <4.5 kg |
Dimensions and form factors
| Model | Overall dimensions (W×H×D) | Nominal dimensions (W×H×D) |
|---|---|---|
| 3657A/B | (435.5±4)×(235±2.5)×(296±2.5) mm | (426±2)×(221.5±1.2)×(250±1.2) mm |
| 3657C/D/E | (435.5±4)×(235±2.5)×(302±2.5) mm | (426±2)×(221.5±1.2)×(250±1.2) mm |
| 3657AM/BM | (426±2)×(102±1.5)×(546±4) mm | (426±2)×(88.1±0.8)×(500±2) mm |
| 3657CM/DM/EM | (426±2)×(102±1.5)×(552±4) mm | (426±2)×(88.1±0.8)×(500±2) mm |
| 3657CU/DU/EU | (213±1.2)×(99±1.5)×(352±2.5) mm | (213±1.2)×(88.1±0.8)×(300±1.2) mm |
Frequency-segment performance
The following segments apply only within the frequency range supported by the selected model. The 9 kHz–100 kHz region requires the corresponding low-frequency extension. Trace noise: IFBW=100 Hz (9 kHz–10 MHz), IFBW=1 kHz (10 MHz–26.5 GHz).
| Parameter | 3657A/B/AM/BM | 3657C/D/E/CM/DM/EM/CU/DU/EU |
|---|---|---|
| Maximum output power | 0 dBm (9–100 kHz)；10 dBm (100 kHz–9 GHz) | 10 dBm (100 kHz–14 GHz)；0 dBm (14–26.5 GHz) |
| System dynamic range | 98 dB (9–100 kHz)；110 dB (100 kHz–10 MHz)；140 dB (10 MHz–6 GHz)；136 dB (6–9 GHz) | 95 dB (100 kHz–18 MHz)；140 dB (18 MHz–6 GHz)；130 dB (6–9 GHz)；120 dB (9–14 GHz)；110 dB (14–20 GHz)；100 dB (20–26.5 GHz) |
| Effective directivity | 40 dB (9–100 kHz)；46 dB (100 kHz–3 GHz)；40 dB (3–6 GHz)；38 dB (6–9 GHz) | 42 dB (100 kHz–3 GHz)；38 dB (3–6 GHz)；36 dB (6–20 GHz)；32 dB (20–26.5 GHz) |
| Effective source match | 36 dB (9–100 kHz)；36 dB (100 kHz–3 GHz)；35 dB (3–6 GHz)；33 dB (6–9 GHz) | 34 dB (100 kHz–3 GHz)；31 dB (3–6 GHz)；26 dB (6–20 GHz)；24 dB (20–26.5 GHz) |
| Effective load match | 40 dB (9–100 kHz)；44 dB (100 kHz–3 GHz)；40 dB (3–6 GHz)；38 dB (6–9 GHz) | 42 dB (100 kHz–3 GHz)；38 dB (3–6 GHz)；36 dB (6–20 GHz)；32 dB (20–26.5 GHz) |
| Reflection tracking | ±0.050 dB (9–100 kHz)；±0.030 dB (100 kHz–3 GHz)；±0.030 dB (3–6 GHz)；±0.050 dB (6–9 GHz) | ±0.050 dB (100 kHz–3 GHz)；±0.050 dB (3–6 GHz)；±0.080 dB (6–20 GHz)；±0.080 dB (20–26.5 GHz) |
| Transmission tracking | ±0.050 dB (9–100 kHz)；±0.030 dB (100 kHz–3 GHz)；±0.030 dB (3–6 GHz)；±0.050 dB (6–9 GHz) | ±0.050 dB (100 kHz–3 GHz)；±0.080 dB (3–6 GHz)；±0.100 dB (6–20 GHz)；±0.150 dB (20–26.5 GHz) |
| Magnitude trace noise | 0.0060 dB rms (9–100 kHz)；0.0060 dB rms (100 kHz–10 MHz)；0.0015 dB rms (10 MHz–3 GHz)；0.0020 dB rms (3–6 GHz)；0.0030 dB rms (6–9 GHz) | 0.0300 dB rms (100 kHz–10 MHz)；0.0030 dB rms (10 MHz–3 GHz)；0.0050 dB rms (3–9 GHz)；0.0080 dB rms (9–18 GHz)；0.0120 dB rms (18–26.5 GHz) |
| Phase trace noise | 0.300° rms (9–100 kHz)；0.300° rms (100 kHz–10 MHz)；0.045° rms (10 MHz–3 GHz)；0.060° rms (3–6 GHz)；0.090° rms (6–9 GHz) | 0.300° rms (100 kHz–10 MHz)；0.045° rms (10 MHz–3 GHz)；0.050° rms (3–9 GHz)；0.080° rms (9–18 GHz)；0.120° rms (18–26.5 GHz) |
Functions and applications
| Function | Description |
|---|---|
| RF component measurement | Measures S-parameter magnitude, phase and group delay of filters, amplifiers, antennas and cables. |
| Display formats | Log/linear magnitude, VSWR, phase, group delay, Smith chart and polar format; multiple channels and windows. |
| Error calibration and fixture simulation | Error calibration and fixture simulation. Automatic fixture removal requires 3657-S07. |
| Time-domain analysis | Standard time-domain analysis; advanced impedance testing and virtual eye analysis require 3657-S11. |
| Test speed | Test speed can reach 4 μs/point; actual speed depends on sweep settings and configuration. |
| Dynamic range | Up to 140 dB (IFBW=10 Hz); see the model-specific frequency segments in the performance table. |
| Data analysis | Ripple, bandwidth and limit tests support production pass/fail decisions. |
| Remote control and scripts | Desktop and rackmount models have LAN. SCPI command recording and script generation are supported. USB models use a Thunderbolt computer. |
| Desktop operation | 3657A/B/C/D/E include a 12.1-inch multi-touch display. |
| 2U rackmount form | 3657AM/BM/CM/DM/EM include a CPU and need no external computer; the display is optional. |
| USB form | 3657CU/DU/EU have a TYPE-C Thunderbolt interface, no internal CPU/display, and require a compatible Thunderbolt computer. |
| Four-port and balanced measurements | Desktop/rackmount -400 configurations measure all 16 S-parameters of a four-port network and balanced parameters; USB models have no four-port option. |
Optional items
Expand options, calibration kits and test accessories
| Option/component model | Item | Description | Applicable configuration |
|---|---|---|---|
| 3657-001 | Rack mounting kit | Desktop rack installation | 3657A/B/C/D/E |
| 3657-002 | Rack mounting kit | 2U rack installation | 3657AM/BM/CM/DM/EM |
| 3657-003 | Chinese user manual | Printed detailed Chinese user manual | Select by configuration |
| 3657-004 | English user manual | Printed detailed English user manual | Select by configuration |
| 3657-005 | Aluminium transport case | Instrument transport | 3657A/B/C/D/E |
| 3657-006 | English language option | English front/rear panels and operating system | Select by configuration |
| 3657-007 | Laptop computer | Thunderbolt interface | Select by configuration |
| 3657-S07 | Automatic fixture removal | Automatic testing and removal of fixtures for single-ended/balanced devices | All models |
| 3657-S11 | Advanced time-domain analysis | TDR impedance testing and eye analysis | All models |
| 3657A-JL | Calibration service | Calibration service with calibration report | 3657A/AM |
| 3657B-JL | Calibration service | Calibration service with calibration report | 3657B/BM |
| 3657C-JL | Calibration service | Calibration service with calibration report | 3657C/CM/CU |
| 3657D-JL | Calibration service | Calibration service with calibration report | 3657D/DM/DU |
| 3657E-JL | Calibration service | Calibration service with calibration report | 3657E/EM/EU |
| 3657A-EWT1 | 1-year extended warranty | 1 year after standard warranty; multiple items extend the term. Calibration excluded; one-way freight only. Region and service terms confirmed in quotation/order. | 3657A |
| 3657B-EWT1 | 1-year extended warranty | 1 year after standard warranty; multiple items extend the term. Calibration excluded; one-way freight only. Region and service terms confirmed in quotation/order. | 3657B |
| 3657C-EWT1 | 1-year extended warranty | 1 year after standard warranty; multiple items extend the term. Calibration excluded; one-way freight only. Region and service terms confirmed in quotation/order. | 3657C |
| 3657D-EWT1 | 1-year extended warranty | 1 year after standard warranty; multiple items extend the term. Calibration excluded; one-way freight only. Region and service terms confirmed in quotation/order. | 3657D |
| 3657E-EWT1 | 1-year extended warranty | 1 year after standard warranty; multiple items extend the term. Calibration excluded; one-way freight only. Region and service terms confirmed in quotation/order. | 3657E |
| 3657AM-EWT1 | 1-year extended warranty | 1 year after standard warranty; multiple items extend the term. Calibration excluded; one-way freight only. Region and service terms confirmed in quotation/order. | 3657AM |
| 3657BM-EWT1 | 1-year extended warranty | 1 year after standard warranty; multiple items extend the term. Calibration excluded; one-way freight only. Region and service terms confirmed in quotation/order. | 3657BM |
| 3657CM-EWT1 | 1-year extended warranty | 1 year after standard warranty; multiple items extend the term. Calibration excluded; one-way freight only. Region and service terms confirmed in quotation/order. | 3657CM |
| 3657DM-EWT1 | 1-year extended warranty | 1 year after standard warranty; multiple items extend the term. Calibration excluded; one-way freight only. Region and service terms confirmed in quotation/order. | 3657DM |
| 3657EM-EWT1 | 1-year extended warranty | 1 year after standard warranty; multiple items extend the term. Calibration excluded; one-way freight only. Region and service terms confirmed in quotation/order. | 3657EM |
| 3657CU-EWT1 | 1-year extended warranty | 1 year after standard warranty; multiple items extend the term. Calibration excluded; one-way freight only. Region and service terms confirmed in quotation/order. | 3657CU |
| 3657DU-EWT1 | 1-year extended warranty | 1 year after standard warranty; multiple items extend the term. Calibration excluded; one-way freight only. Region and service terms confirmed in quotation/order. | 3657DU |
| 3657EU-EWT1 | 1-year extended warranty | 1 year after standard warranty; multiple items extend the term. Calibration excluded; one-way freight only. Region and service terms confirmed in quotation/order. | 3657EU |
| 20205 | N-type 50 Ω mechanical calibration kit | DC–3 GHz | Select by configuration |
| 20201 | N-type 50 Ω mechanical calibration kit | DC–9 GHz | Select by configuration |
| 31101 | N-type 50 Ω mechanical calibration kit | DC–18 GHz | Select by configuration |
| 31121A | 3.5 mm mechanical calibration kit | DC–6 GHz | Select by configuration |
| 20202 | 3.5 mm mechanical calibration kit | DC–9 GHz | Select by configuration |
| 31121 | 3.5 mm mechanical calibration kit | DC–26.5 GHz | Select by configuration |
| 20404EZ | Electronic calibration kit | 300 MHz–8.5 GHz, 4 ports; 1 connector 4.3-10 and 3 connectors 3.5 mm | Select by configuration |
| 20402D | Electronic calibration kit | 100 kHz–18 GHz, N-type 2 ports | Select by configuration |
| 20404D | Electronic calibration kit | 100 kHz–18 GHz, N-type 4 ports | Select by configuration |
| 20402E | Electronic calibration kit | 10 MHz–26.5 GHz, 3.5 mm 2 ports | Select by configuration |
| 20404E | Electronic calibration kit | 10 MHz–26.5 GHz, 3.5 mm 4 ports | Select by configuration |
| GORE-OSZKUZKU0240 | N-type GORE test cable | N male–male, 60 cm | Select by configuration |
| GORE-OSZKUZKV0240 | N-type GORE test cable | N female–male, 60 cm | Select by configuration |
| FB0HA0HB025.0 | 3.5 mm GORE test cable | 3.5 mm male test end; for 3657C/D/E/CM/DM/EM/CU/DU/EU | Select by configuration |
| FB0HA0HC025.0 | 3.5 mm GORE test cable | 3.5 mm female test end; for 3657C/D/E/CM/DM/EM/CU/DU/EU | Select by configuration |
| 87302AZ | N-type test cable | N male–male, 60 cm | Select by configuration |
| 87302BA | N-type test cable | N female–male, 60 cm | Select by configuration |
| 87302AY | N-SMA test cable | N male/SMA female, 80 cm | Select by configuration |
| 87302AX | N-SMA test cable | N male/SMA male, 80 cm | Select by configuration |
| 87302FZ | 3.5 mm test cable | 3.5 mm female test end; for 3657C/D/E/CM/DM/EM/CU/DU/EU | Select by configuration |
| 87302FE | 3.5 mm test cable | 3.5 mm male test end; for 3657C/D/E/CM/DM/EM/CU/DU/EU | Select by configuration |
| 87601 | Microwave assistant (N-type) | Coaxial adapter set: N to 3.5 mm, 2.4 mm and other interfaces | Select by configuration |
| 87601A | Microwave assistant (3.5 mm) | Coaxial adapter set: 3.5 mm to N, 2.4 mm and other interfaces | Select by configuration |
| P2418HT | Display | 23.8-inch touch display | Select by configuration |
| 3657-S18 | Fast CW sweep | FIFO buffering, immediate data readout | All models |
| 3657A-221 | Two-port 9 kHz extension | Lower limit extended to 9 kHz | 3657A |
| 3657A-400 | Four-port measurement | Dual-source excitation, 4 ports, 100 kHz–4.5 GHz | 3657A |
| 3657A-421 | Four-port 9 kHz extension | Lower limit extended to 9 kHz; requires -400 | 3657A |
| 3657B-221 | Two-port 9 kHz extension | Lower limit extended to 9 kHz | 3657B |
| 3657B-400 | Four-port measurement | Dual-source excitation, 4 ports, 100 kHz–9 GHz | 3657B |
| 3657B-421 | Four-port 9 kHz extension | Lower limit extended to 9 kHz; requires -400 | 3657B |
| 3657C-400 | Four-port measurement | Dual-source excitation, 4 ports, 100 kHz–14 GHz | 3657C |
| 3657D-400 | Four-port measurement | Dual-source excitation, 4 ports, 100 kHz–20 GHz | 3657D |
| 3657E-400 | Four-port measurement | Dual-source excitation, 4 ports, 100 kHz–26.5 GHz | 3657E |
| 3657AM-221 | Two-port 9 kHz extension | Lower limit extended to 9 kHz | 3657AM |
| 3657AM-400 | Four-port measurement | Dual-source excitation, 4 ports, 100 kHz–4.5 GHz | 3657AM |
| 3657AM-421 | Four-port 9 kHz extension | Lower limit extended to 9 kHz; requires -400 | 3657AM |
| 3657BM-221 | Two-port 9 kHz extension | Lower limit extended to 9 kHz | 3657BM |
| 3657BM-400 | Four-port measurement | Dual-source excitation, 4 ports, 100 kHz–9 GHz | 3657BM |
| 3657BM-421 | Four-port 9 kHz extension | Lower limit extended to 9 kHz; requires -400 | 3657BM |
| 3657CM-400 | Four-port measurement | Dual-source excitation, 4 ports, 100 kHz–14 GHz | 3657CM |
| 3657DM-400 | Four-port measurement | Dual-source excitation, 4 ports, 100 kHz–20 GHz | 3657DM |
| 3657EM-400 | Four-port measurement | Dual-source excitation, 4 ports, 100 kHz–26.5 GHz | 3657EM |
Standard accessories
| Applicable models | Accessory | Description |
|---|---|---|
| 3657A/B/C/D/E/AM/BM/CM/DM/EM | Power cord | Standard three-core |
| 3657A/B/C/D/E/AM/BM/CM/DM/EM | Mouse | — |
| 3657A/B/C/D/E/AM/BM/CM/DM/EM | Quick-start guide | — |
| 3657A/B/C/D/E/AM/BM/CM/DM/EM | Product conformity certificate | Factory product conformity certificate |
| 3657CU/DU/EU | Power cord | Standard three-core |
| 3657CU/DU/EU | Power adapter | — |
| 3657CU/DU/EU | Communication cable assembly | — |
| 3657CU/DU/EU | Mouse | — |
| 3657CU/DU/EU | Quick-start guide | — |
| 3657CU/DU/EU | Product conformity certificate | Factory product conformity certificate |
Other information
- Choose the frequency range, ports and display configuration for the specific model. 3657A/B/AM/BM may use two-port -221 or four-port -421 to extend the lower limit to 9 kHz; -421 requires -400.
- The performance table groups model families by frequency segments. Segments above the selected model's upper limit do not apply. For example, 3657A ends at 4.5 GHz, so the 6–9 GHz segment does not apply.
- The highest dynamic-range figure is specified at IFBW=10 Hz. Trace noise uses IFBW=100 Hz (9 kHz–10 MHz) and IFBW=1 kHz (10 MHz–26.5 GHz).
- Nominal dimensions exclude handles, feet, rear supports, wheels, keys, straps, plugs, screws, grounding posts, interfaces and local protrusions. Dimensions are width×height×depth.
- USB models require a compatible Thunderbolt computer. Displays, computers, calibration kits, cables and software extensions are supplied only as specified in the options and order, not automatically because they appear in a picture.
- Calibration-kit and cable frequency ratings do not change the instrument's range. Region, availability, delivery and conditions of calibration and extended-warranty services are confirmed in the quotation and order.
- Products are supplied by quotation. Please specify frequency range, port count, form factor, options and quantity.
