YC-TI-VNA-0006 | 3622K handheld vector network analyzer appearance example

YC-TI-VNA-0006 | 3622 Series Handheld Vector Network Analyzer

Price on request

Request a quote

Product overview

The 3622 handheld vector network analyzers support RF testing of filters, amplifiers, attenuators, duplexers and antenna/feedline systems. Six models cover 300 kHz to 9, 18, 26.5, 44, 50 or 54 GHz. S-parameter vector network analysis, a 10.1-inch touchscreen and battery operation are standard. Cable/antenna analysis, vector voltmeter, USB power and optical tests are optional.

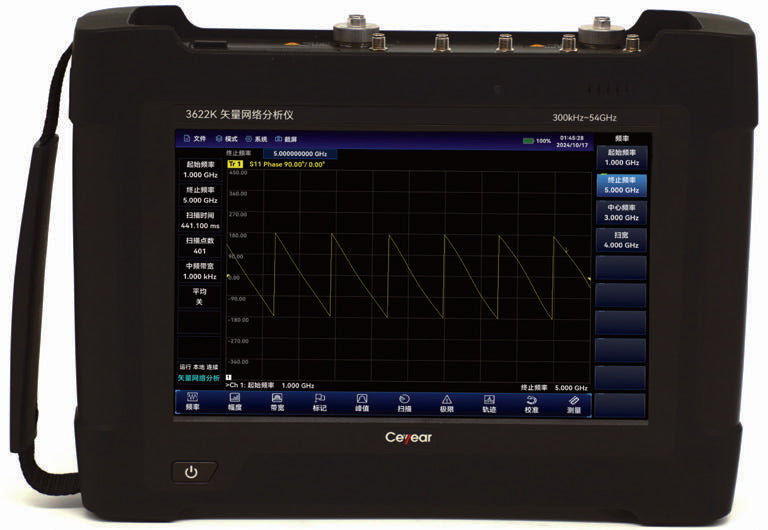

3622K appearance example; connectors and configurations of other frequency models may differ.

Request a quote

Core specifications

Models and frequency ranges

Model	Frequency range	Connector	High-power output	Output power accuracy	Effective directivity
3622B	300 kHz–9 GHz	N female	−8–+3 dBm	±2.0 dB	34–42 dB
3622D	300 kHz–18 GHz	3.5 mm male	−8–+3 dBm	±2.0 dB	34–42 dB
3622E	300 kHz–26.5 GHz	3.5 mm male	−8–+3 dBm	±2.0 dB	34–42 dB
3622G	300 kHz–44 GHz	2.4 mm male	−8–+3 dBm	±2.0–±2.5 dB	26–42 dB
3622H	300 kHz–50 GHz	2.4 mm male	−8–+3 dBm	±2.0–±2.5 dB	26–42 dB
3622K	300 kHz–54 GHz	1.85 mm male	−12–+3 dBm	±2.0–±3.0 dB	26–42 dB

Common specifications

Parameter	Specification
Frequency accuracy	±9×10⁻⁷
Frequency resolution	1 Hz
IF bandwidth	3/10/30/100/300 Hz; 1/3/10/30/100 kHz
Low-power output	−35 dBm
Display	10.1-inch capacitive touchscreen
Markers, windows and traces	8 markers, 4 windows, 8 traces
Reference interface	10 MHz input/output
Communication and storage	LAN, USB, MicroSD; GPS/BeiDou and Wi-Fi require options
Operating temperature	−20–+55 °C
Storage temperature	−50–+70 °C
Battery operation	3 hours typical; dependent on operating conditions

Dimensions and weight

Parameter	Specification	Applicability
Dimensions (W×H×D)	(316.7±2.5)×(236.5±2.5)×(75.0±1.5) mm	Excludes side strap, front-panel connectors and port plugs
Weight	<3.7 kg	Excluding internal battery

Model-specific performance

Parameter	3622B/D/E	3622G/H	3622K
Reflection tracking	±0.06 dB	±0.06–±0.08 dB	±0.06–±0.12 dB
Transmission tracking	±0.08–±0.16 dB	±0.08–±0.24 dB	±0.08–±0.28 dB
System dynamic range	90–103 dB	81–103 dB	80–103 dB
Magnitude trace noise	0.0015–0.0040 dB rms	0.0015–0.0050 dB rms	0.0015–0.0100 dB rms
Phase trace noise	0.0200–0.0500 ° rms	0.0200–0.1200 ° rms	0.0200–0.5000 ° rms

Measurement functions

Function	Configuration and description
S-parameter measurements (standard)	Simultaneous measurement of 4 S-parameters, magnitude, phase and mixed-reflection S-parameters
Calibration methods	Full two-port, unknown-thru, waveguide, external electronic calibration and user-defined kits; electronic calibration requires 3622-S33 and a separate kit
Display formats	Log/linear magnitude, phase, group delay, Smith chart, polar and VSWR
Typical dynamic range	113 dB typical for 10 MHz<f≤20 GHz, limited to the selected model's frequency range
Cable and antenna analysis (option)	3622-S30: return loss, VSWR, impedance, cable loss and DTF; add 3622-S32 for TDR
Vector voltmeter (option)	3622-S31: magnitude, phase, electrical length and A/B, B/A measurements
USB power measurements (option)	CW/average power requires 3622-S01; peak power requires 3622-S02 and matching probes; probe coverage up to 67 GHz does not extend the VNA frequency range
Optical time-domain reflectometry (option)	3622-S34 and 3622-H67: G.652 single-mode 9/125 fiber, 1310±20 nm and 1550±20 nm; 38 dB typical dynamic range
Optical power measurement (option)	3622-S34 and 3622-H67: −50–+20 dBm typical; calibration wavelengths 850/980/1270/1300/1310/1490/1550/1577/1625/1650 nm
Mixed-mode S-parameters and time domain (options)	3622-S35: differential S-parameters; 3622-S36: VNA time-domain measurements

Options and matching accessories

Option/accessory model	Specification and requirements
3622-01	English-language software
3622-02	Chinese user manual
3622-03	English user manual
3622-04	Chinese programming manual
3622-05	English programming manual
3622-S01	USB power measurement; requires 87233C/D/E/F/L or 87235B/C/D/DG/F/FA/H/L probes
3622-S02	USB peak power; matching 87234D/E/F/L power meters and 87236D/E/F/L probes
3622-S30	Cable/antenna analysis: return loss, VSWR and cable breaks
3622-S31	Vector voltmeter: phase shift and electrical length
3622-S32	TDR fault analysis; requires 3622-S30
3622-S33	Electronic-calibration software; separate calibration module required
3622-S34	OTDR and optical power; requires 3622-H67
3622-S35	Differential S-parameters
3622-S36	VNA time-domain measurements
3622-H01	GPS/BeiDou positioning; external antenna required
3622-H02	Wi-Fi wireless communication
3622-H03	Aluminum case with pull handle
3622-H04	Transport case with pull handle
3622-H05	Portable backpack
3622-H06	Power adapter
3622-H07	Spare Li-ion battery: 9900 mAh, 10.8 V; confirm shipping conditions
3622-H08	Spare Li-ion battery: 9000 mAh, 10.8 V; confirm shipping conditions
3622-H09	Vehicle adapter: input 12–24 V, output 19 V
3622-H10	Smart battery charging dock
3622-H11	MicroSD memory card: 128 GB
87233C	USB CW power probe: 8 kHz–8 GHz; N male
87233D	USB CW power probe: 10 MHz–18 GHz; N male
87233E	USB CW power probe: 50 MHz–26.5 GHz; 3.5 mm male
87233F	USB CW power probe: 50 MHz–40 GHz; 2.4 mm male
87233L	USB CW power probe: 50 MHz–67 GHz; 1.85 mm male
87235B	USB average-power probe: 8 kHz–8 GHz; N male
87235C	USB average-power probe: 10 MHz–8 GHz; N male
87235D	USB average-power probe: 10 MHz–18 GHz; N male
87235DG	USB average-power probe: 10 MHz–18 GHz; N male
87235F	USB average-power probe: 10 MHz–33 GHz; 3.5 mm male
87235FA	USB average-power probe: 10 MHz–40 GHz; 2.92 mm male
87235H	USB average-power probe: 10 MHz–50 GHz; 2.4 mm male
87235L	USB average-power probe: 50 MHz–67 GHz; 1.85 mm male
87236D	USB peak/average-power probe: 50 MHz–18 GHz; N male
87236E	USB peak/average-power probe: 50 MHz–26.5 GHz; 3.5 mm male
87236F	USB peak/average-power probe: 50 MHz–40 GHz; 2.4 mm male
87236L	USB peak/average-power probe: 500 MHz–67 GHz; 1.85 mm male
31101A	Coaxial calibration kit: DC–18 GHz; N male
31101B	Coaxial calibration kit: DC–18 GHz; N female
31121	Coaxial calibration kit: DC–26.5 GHz; 3.5 mm
31123A	Coaxial calibration kit: DC–50 GHz; 2.4 mm
20209LB	Coaxial calibration kit: DC–67 GHz; 1.85 mm
20402D	Electronic calibration module: 100 kHz–18 GHz; N
20402E	Electronic calibration module: 10 MHz–26.5 GHz; 3.5 mm
20402H	Electronic calibration module: 10 MHz–50 GHz; 2.4 mm
20402L	Electronic calibration module: 10 MHz–67 GHz; 1.85 mm
3622-H49	Calibration cable: N male/male; GORE-OSZKUZKU0240
3622-H50	Calibration cable: N female/male; GORE-OSZKUZKV0240
3622-H51	Calibration cable: 3.5 mm female/female; GORE-0RD02D02024.0
3622-H52	Calibration cable: 3.5 mm female/male; GORE-0RD01D02024.0
3622-H53	Calibration cable: 2.4 mm female/female; GORE-0K0CK0CK024.0
3622-H54	Calibration cable: 2.4 mm female/male; GORE-0K0CJ0CK024.0
3622-H55	Calibration cable: 2.4 mm female/male; 0Z0CJ0CK024.0; 50 GHz
3622-H56	Calibration cable: 2.4 mm female/female; 0Z0CK0CK024.0; 50 GHz
3622-H57	Calibration cable: 1.85 mm female/male; 0F0CB0CA024.0; 67 GHz
3622-H58	Calibration cable: 1.85 mm female/female; 0F0CA0CA024.0; 67 GHz
87302FZ	Test cable: 3.5/3.5-KK, 0.6 m
87302FE	Test cable: 3.5/3.5-KJ, 0.6 m
87302AZ	Test cable: N/N-JJ, 0.6 m
87302BA	Test cable: N/N-KJ, 0.6 m
87302NZ	Test cable: 1.85/1.85-KK, 0.6 m
87302NY	Test cable: 1.85/1.85-KJ, 0.6 m
87302QQ	Test cable: 2.4/2.4-KK, 0.6 m
87302QP	Test cable: 2.4/2.4-KJ, 0.6 m
3622-H63	Test cable: 3.5/N-KJ, 1.0 m; AL50-35FNM-01.00M
3622-H64	Test cable: 3.5/N-JJ, 1.0 m; AL50-35MNM-01.00M
3622-H65	Test cable: 2.4/3.5-KK, 1.0 m; AL50-24F35F-01.00M
3622-H66	Test cable: 2.4/3.5-KJ, 1.0 m; AL50-24F35M-01.00M
3622-H67	USB OTDR/optical-power module; requires 3622-S34
3622B-JL	Metrology calibration and report; for 3622B only
3622D-JL	Metrology calibration and report; for 3622D only
3622E-JL	Metrology calibration and report; for 3622E only
3622G-JL	Metrology calibration and report; for 3622G only
3622H-JL	Metrology calibration and report; for 3622H only
3622K-JL	Metrology calibration and report; for 3622K only
3622B-EWT1	3622B: 1-year extended warranty; select multiple units for additional years; calibration excluded, one-way freight and service region subject to order confirmation
3622D-EWT1	3622D: 1-year extended warranty; select multiple units for additional years; calibration excluded, one-way freight and service region subject to order confirmation
3622E-EWT1	3622E: 1-year extended warranty; select multiple units for additional years; calibration excluded, one-way freight and service region subject to order confirmation
3622G-EWT1	3622G: 1-year extended warranty; select multiple units for additional years; calibration excluded, one-way freight and service region subject to order confirmation
3622H-EWT1	3622H: 1-year extended warranty; select multiple units for additional years; calibration excluded, one-way freight and service region subject to order confirmation
3622K-EWT1	3622K: 1-year extended warranty; select multiple units for additional years; calibration excluded, one-way freight and service region subject to order confirmation

Standard accessories

Accessory
Power cord
9000 mAh rechargeable Li-ion battery
Power adapter
Quick-start guide
Factory product certificate

Notes

Frequency range, connectors and performance depend on the selected model. Model-specific performance ranges vary with frequency; 113 dB is typical in the stated band, not a full-band guaranteed value.
Cable/antenna, TDR, vector voltmeter, GPS/BeiDou, Wi-Fi, USB power and optical functions require matching options or external accessories; they are not all standard.
Calibration-kit and USB-probe frequency limits do not extend the VNA range. Cable connector codes: K = female, J = male; match them to the actual ports.
Battery runtime is typical. Battery shipping conditions, accessory availability and extended-warranty coverage are confirmed in the quotation and order. The image shows a 3622K appearance example.
Specify the required frequency range, connectors, functions, accessories and quantity for configuration selection and a quotation.
