YC-TI-SPM-0002 | 3601 Series S-Parameter Test Module
Price on request
Request a quoteTest & measurement instruments

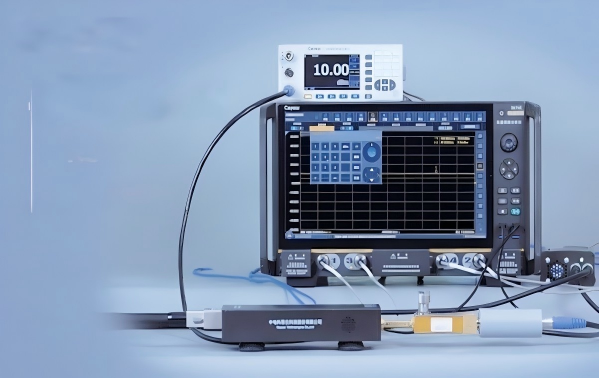

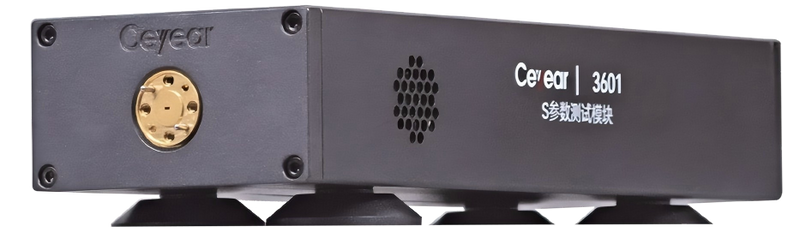

The 3601 Series S-Parameter Test Module extends the millimeter-wave frequency range of a compatible vector network analyzer. Individual models cover different bands across 60–500 GHz for network-parameter testing of millimeter-wave devices.
Models and frequency ranges

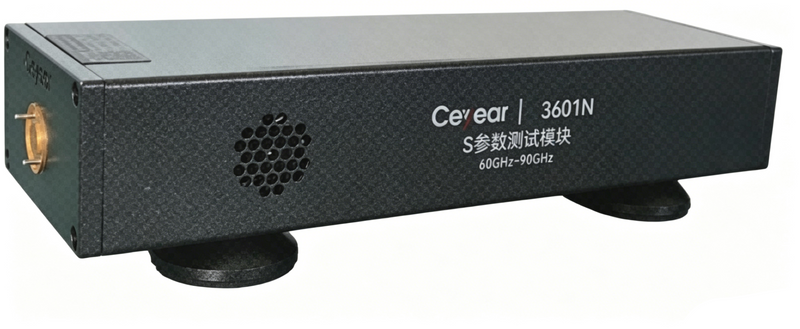

| 3601N | 60–90 GHz |
|---|---|
| 3601P | 75–110 GHz |
| 3601Q | 110–170 GHz |
| 3601R | 140–220 GHz |
| 3601SA | 170–260 GHz |
| 3601S | 220–330 GHz |
| 3601T | 330–500 GHz |
| Programmable port-power adjustment range | ≥ 30 dB; this function requires a 3674 Series VNA host |
| Power consumption | ≤ 50 W |
Each module covers its specified band; a single module does not continuously cover 60–500 GHz. Confirm host compatibility, waveguide interface and calibration accessories for the selected model.
Reseller product. Contact Yanchuan to confirm configuration, quotation and lead time.
