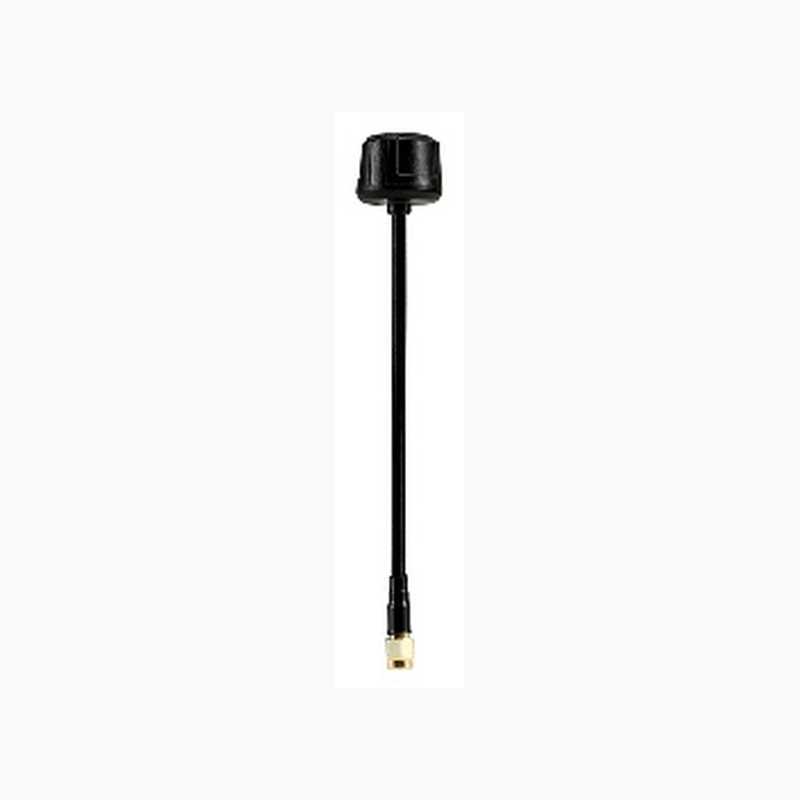

YC-A-COM-0030 | 3.3 GHz Lollipop-Style RHCP Antenna
Price on request
Request a quoteLollipop-style RHCP antenna for 3.3 GHz communication equipment, covering 3000–3500 MHz with 4 dBi gain and an SMA connector.
Technical specifications
| Frequency range | 3000–3500 MHz |
|---|---|
| Polarization | RHCP |
| Gain | 4 dBi |
| Impedance | 50 Ω |
| VSWR at 3300 MHz | ≤1.5 |
| Max. input power | 50 W |
| Connector | SMA |
| Dimensions | Approx. 25 × 150 mm |
| Weight | Approx. 14 g (SMA configuration) |
| Radome | ABS; black |
| Operating temperature | −40 to +60 °C |
Configuration notes
Cable length and connector fit can be confirmed for the target installation.
Ordering and delivery
- Standard MOQ: 1 unit
- Typical sample lead time: 2 weeks
- Typical volume-production lead time: 4 weeks
Final configuration and schedule are confirmed in the quotation.
