YC-TI-PSU-0002 | 1768 Series Programmable DC Power Supply

YC-TI-PSU-0002 | 1768 Series Programmable DC Power Supply

Price on request

Request a quote

Test & measurement instruments

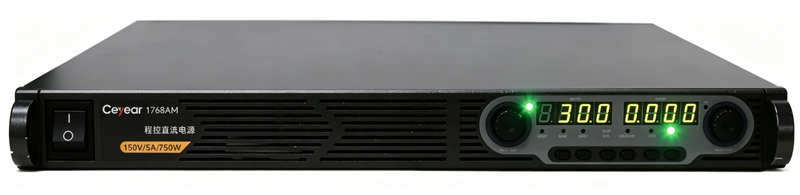

The 1768 Series is a 1U rack-mount programmable DC power supply for laboratories, production and automated test systems. Rated power, output voltage and output current are linked to each specific model; select according to the load.

Model selection table

Manufacturer modelRated powerOutput voltageOutput current
1768AB600 W0–6 V0–100 A
1768AE760 W0–20 V0–38 A
1768AG760 W0–40 V0–19 A
1768AK760 W0–80 V0–9.5 A
1768AL750 W0–100 V0–7.5 A
1768AM750 W0–150 V0–5 A
1768AN750 W0–300 V0–2.5 A
1768AP780 W0–600 V0–1.3 A
1768BA1200 W0–6 V0–200 A
1768BE1520 W0–20 V0–76 A
1768BG1520 W0–40 V0–38 A
1768BK1520 W0–80 V0–19 A
1768BL1500 W0–100 V0–15 A
1768BM1500 W0–150 V0–10 A
1768BN1500 W0–300 V0–5 A
1768BP1500 W0–600 V0–2.5 A

600 V and 200 A belong to different models and cannot be combined as one unit's rating. Confirm interfaces, ripple, accuracy and series/parallel operation for the selected model.

Reseller product. Contact Yanchuan to confirm configuration, quotation and lead time.

Request configuration and quotation
