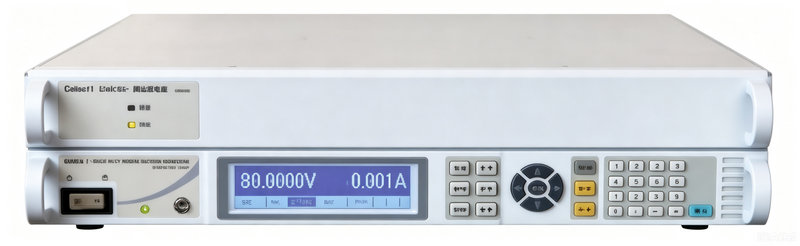

YC-TI-PSU-0003 | 1765 Series Programmable DC Power Supply
Price on request
Request a quoteThe Ceyear 1765 series provides power and measurement for energy-storage equipment, bidirectional power systems and automated tests. Its separate source/dissipator architecture supports a two-quadrant source/sink system when appropriately configured. Output ratings differ by model; sinking capability depends on the dissipator configuration.
Technical specifications
| Catalog model | YC-TI-PSU-0003 |
|---|---|
| AC input voltage | 100–242 V AC |
| AC input frequency | 50/60 Hz ±5% |
| Programming/control interfaces | GPIB / LAN / USB |
| Power dissipator option | 1765-001: 1 kW power absorption |
| 110 V AC supply limitation | Catalog note: power-source output derates to 700 W |
Manufacturer models and rated output
| Manufacturer model | Rated power | Output voltage | Output current |
|---|---|---|---|
| 1765A | 900 W | 0–9 V | 0–100 A |
| 1765B | 1000 W | 0–20 V | 0–50 A |
| 1765C | 1000 W | 0–40 V | 0–25 A |
| 1765D | 1000 W | 0–60 V | 0–16.7 A |
| 1765E | 1000 W | 0–80 V | 0–12.5 A |
| 1765AF | 2000 W | 0–120 V | 0–16.7 A |
| 1765AG | 2000 W | 0–160 V | 0–12.5 A |
Configuration notes
- 160 V, 100 A and 2000 W are series maxima across different models, not simultaneous ratings of one unit.
- Output power is not the same as sinking power. Confirm two-quadrant operation, dissipator quantity, sink current and AC supply conditions during system selection. The dissipator option is not assumed to be included with the base unit.
Ordering and delivery
Manufacturer model numbers are retained. The Yanchuan catalog model is an inquiry reference. Confirm the exact model, options, accessories, language, quantity and delivery schedule in the written quotation.
