YC-TI-PSU-0001 | 1764 Series Programmable DC Power Supply

Price on request

Request a quote

The 1764 series uses a modular 1U mainframe with up to four outputs, 300 W per module and up to 1200 W total. Five single-output modules provide voltage configurations from 0–20 V to 0–150 V, with module-dependent maximum currents of 2–15 A. CV/CC operation, remote sensing and LAN, USB and GPIB control support R&D and automated test systems.

Core specifications

Parameter	Value
Mainframe	Modular 1U mainframe
Maximum number of outputs	4
Total output power	Up to 1200 W; no more than 600 W with 110 V AC mains
Single-output module power	300 W
Output modes	Constant voltage / constant current (CV/CC)
Remote control	LAN / USB / GPIB

Module selection

Output module	Option code	Voltage range	Current range	Rated power
DC1764-M3020A	1764-005	0–20 V	0–15 A	300 W
DC1764-M3035A	1764-002	0–35 V	0–8.5 A	300 W
DC1764-M3060A	1764-003	0–60 V	0–5 A	300 W
DC1764-M3100A	1764-004	0–100 V	0–3 A	300 W
DC1764-M3150A	1764-006	0–150 V	0–2 A	300 W

Regulation and ripple

Specification	DC1764-M3020A	DC1764-M3035A	DC1764-M3060A	DC1764-M3100A	DC1764-M3150A
Source effect: voltage	2 mV	4 mV	6 mV	10 mV	15 mV
Source effect: current	1 mA	1 mA	1 mA	1 mA	1 mA
Load effect: voltage	13 mV	16 mV	24 mV	45 mV	68 mV
Load effect: current	6 mA	6 mA	6 mA	6 mA	6 mA
Voltage ripple/noise (RMS / peak-to-peak)	3 / 20 mV	5 / 22 mV	9 / 35 mV	18 / 45 mV	27 / 68 mV
Current ripple/noise	6 mA	6 mA	6 mA	6 mA	6 mA

Programming and readback accuracy

Specification	DC1764-M3020A	DC1764-M3035A	DC1764-M3060A	DC1764-M3100A	DC1764-M3150A
Voltage programming accuracy	±(0.1% × Vset + 20 mV)	±(0.1% × Vset + 35 mV)	±(0.1% × Vset + 60 mV)	±(0.1% × Vset + 100 mV)	±(0.1% × Vset + 150 mV)
Current programming accuracy	±(0.15% × Iset + 60 mA)	±(0.15% × Iset + 60 mA)	±(0.15% × Iset + 60 mA)	±(0.15% × Iset + 30 mA)	±(0.15% × Iset + 30 mA)
Voltage readback accuracy	±(0.1% × Vread + 20 mV)	±(0.1% × Vread + 35 mV)	±(0.1% × Vread + 60 mV)	±(0.1% × Vread + 100 mV)	±(0.1% × Vread + 150 mV)
Current readback accuracy	±(0.15% × Iread + 15 mA)	±(0.15% × Iread + 12 mA)	±(0.15% × Iread + 12 mA)	±(0.15% × Iread + 6 mA)	±(0.15% × Iread + 6 mA)

Mainframe specifications

Parameter	Value
AC input voltage	100–242 V AC
AC input frequency	50/60 Hz ±5%
Maximum AC input current	15 A RMS
Maximum apparent input power	2200 VA
Overall dimensions (W × H × D)	(433±4.0) × (43.6±1.5) × (585.5±4.0) mm
Nominal dimensions (W × H × D)	(426±2.0) × (43.6±0.8) × (563±2.0) mm, excluding screws and handles
Mainframe weight	≤9 kg
Single-channel module weight	≤1.5 kg
Interface counts	LAN (10/100 Base-T Ethernet) ×1; USB 2.0 Type B ×1; GPIB ×1

Additional information

Voltage and current limits in the module table belong to the respective module. They do not indicate a simultaneous 150 V / 15 A capability. Up to four output modules can be installed in one mainframe; select the combination for the application.

Voltage ripple/noise is listed as RMS / peak-to-peak with a resistive load and a 20 Hz–20 MHz measurement bandwidth.

Accuracy applies at 23 °C±5 °C. Vset/Iset are the programmed voltage/current; Vread/Iread are the readback voltage/current. The percentage term uses the corresponding voltage or current value.

A minimum setting of zero does not guarantee an absolute output of 0 V or 0 A.

Polarity reversal option 1764-007 applies to the five listed output modules, with a maximum reversal current of 10 A. Installing it in DC1764-M3020A limits the rated current to 10 A.

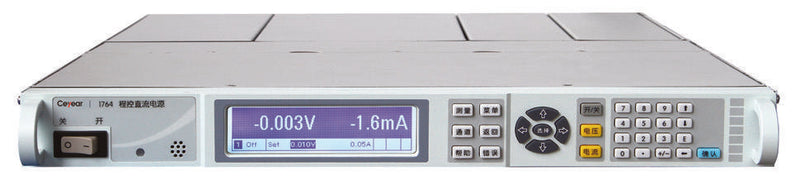

Standard accessories include one three-core power cord, an electronic user manual and a product certificate. The photo shows the mainframe; output modules and options are confirmed with the order.

For a quotation, specify output count, voltage/current for each output, control interfaces and quantity. Configuration, delivery and pricing are confirmed with the order.
