YC-TI-ACC-0002 | Ceyear 16613/16614/16615 Standard and Smart Noise Sources
Price on request
Request a quoteThe 1661X noise-source family provides noise-power standards for noise-figure measurements. The 16613 uses standard +28 V drive, the 16614 uses I²C and the 16615 uses USB. There are 22 selectable configurations, with frequency, ENR and connectors defined by model. The 110 GHz range belongs only to the 16613P. The 16614/16615 provide electronic ENR storage and temperature sensing.

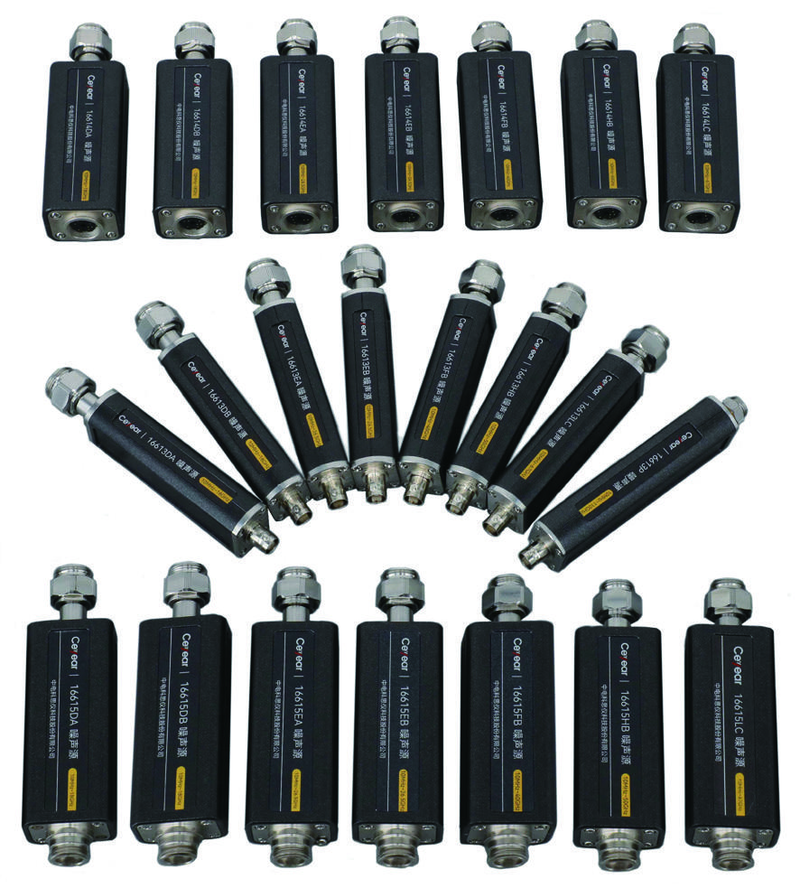

The image illustrates different models in the 16613/16614/16615 family, not a supplied bundle. Model, connectors and accessories are defined in the quotation.
Models and key specifications
| Model | Frequency range | ENR range | Output VSWR | RF output connector | Drive interface |
|---|---|---|---|---|---|
| 16613DA | 10 MHz–18 GHz | 5–8 dB | <1.30:1 | 3.5 mm (M) | BNC (F), +28 V |
| 16613DB | 10 MHz–18 GHz | 14–17 dB | <1.30:1 | 3.5 mm (M) | BNC (F), +28 V |
| 16613EA | 10 MHz–26.5 GHz | 5–8 dB | <1.30:1 | 3.5 mm (M) | BNC (F), +28 V |
| 16613EB | 10 MHz–26.5 GHz | 12–17 dB | <1.35:1 | 3.5 mm (M) | BNC (F), +28 V |
| 16613FB | 10 MHz–40 GHz | 12–19 dB | <1.35:1 (10 MHz–18 GHz); <1.45:1 (18–40 GHz) | 2.4 mm (M) | BNC (F), +28 V |
| 16613HB | 10 MHz–50 GHz | 10–19 dB | <1.35:1 (10 MHz–18 GHz); <1.50:1 (18–50 GHz) | 2.4 mm (M) | BNC (F), +28 V |
| 16613LC | 10 MHz–67 GHz | 7–23 dB | <1.60:1 (10 MHz–40 GHz); <2.00:1 (40–67 GHz) | 1.85 mm (M) | BNC (F), +28 V |
| 16613P | 10 MHz–110 GHz | 4–24 dB | <2.60:1 (10 MHz–50 GHz); <3.00:1 (50–110 GHz) | 1.0 mm (M) | BNC (F), +28 V |
| 16614DA | 10 MHz–18 GHz | 5–8 dB | <1.30:1 | 3.5 mm (M) | I²C |
| 16614DB | 10 MHz–18 GHz | 14–17 dB | <1.30:1 | 3.5 mm (M) | I²C |
| 16614EA | 10 MHz–26.5 GHz | 5–8 dB | <1.30:1 | 3.5 mm (M) | I²C |
| 16614EB | 10 MHz–26.5 GHz | 12–17 dB | <1.35:1 | 3.5 mm (M) | I²C |
| 16614FB | 10 MHz–40 GHz | 12–19 dB | <1.35:1 (10 MHz–18 GHz); <1.45:1 (18–40 GHz) | 2.4 mm (M) | I²C |
| 16614HB | 10 MHz–50 GHz | 10–19 dB | <1.35:1 (10 MHz–18 GHz); <1.50:1 (18–50 GHz) | 2.4 mm (M) | I²C |
| 16614LC | 10 MHz–67 GHz | 7–23 dB | <1.60:1 (10 MHz–40 GHz); <2.00:1 (40–67 GHz) | 1.85 mm (M) | I²C |
| 16615DA | 10 MHz–18 GHz | 5–8 dB | <1.30:1 | 3.5 mm (M) | USB |
| 16615DB | 10 MHz–18 GHz | 14–17 dB | <1.30:1 | 3.5 mm (M) | USB |
| 16615EA | 10 MHz–26.5 GHz | 5–8 dB | <1.30:1 | 3.5 mm (M) | USB |
| 16615EB | 10 MHz–26.5 GHz | 12–17 dB | <1.35:1 | 3.5 mm (M) | USB |
| 16615FB | 10 MHz–40 GHz | 12–19 dB | <1.35:1 (10 MHz–18 GHz); <1.45:1 (18–40 GHz) | 2.4 mm (M) | USB |
| 16615HB | 10 MHz–50 GHz | 10–19 dB | <1.35:1 (10 MHz–18 GHz); <1.50:1 (18–50 GHz) | 2.4 mm (M) | USB |
| 16615LC | 10 MHz–67 GHz | 7–23 dB | <1.60:1 (10 MHz–40 GHz); <2.00:1 (40–67 GHz) | 1.85 mm (M) | USB |
Dimensions and weight
| Applicable models | W×H×D | Weight |
|---|---|---|
| 16613DA / 16613DB / 16613EA / 16613EB | (30±1.0) × (21±1.0) × (136±2.5) mm | 160±10 g |
| 16613FB / 16613HB / 16613LC | (30±1.0) × (21±1.0) × (133±2.5) mm | 160±10 g |
| 16613P | (30±1.0) × (21±1.0) × (132±2.5) mm | 135±10 g |
| 16614DA / 16614DB / 16614EA / 16614EB | (38±1.5) × (28±1.0) × (123±2.5) mm | 175±10 g |
| 16614FB / 16614HB / 16614LC | (38±1.5) × (28±1.0) × (120±1.5) mm | 175±10 g |
| 16615DA / 16615DB / 16615EA / 16615EB | (38±1.5) × (28±1.0) × (133±2.5) mm | 170±10 g |
| 16615FB / 16615HB / 16615LC | (38±1.5) × (28±1.0) × (130±1.5) mm | 170±10 g |
Optional calibration services
| Service code | Noise-source model | Service |
|---|---|---|
| 16613DA-JL | 16613DA | Optional calibration service with report |
| 16613DB-JL | 16613DB | Optional calibration service with report |
| 16613EA-JL | 16613EA | Optional calibration service with report |
| 16613EB-JL | 16613EB | Optional calibration service with report |
| 16613FB-JL | 16613FB | Optional calibration service with report |
| 16614DA-JL | 16614DA | Optional calibration service with report |
| 16614DB-JL | 16614DB | Optional calibration service with report |
| 16614EA-JL | 16614EA | Optional calibration service with report |
| 16614EB-JL | 16614EB | Optional calibration service with report |
| 16614FB-JL | 16614FB | Optional calibration service with report |
| 16615DA-JL | 16615DA | Optional calibration service with report |
| 16615DB-JL | 16615DB | Optional calibration service with report |
| 16615EA-JL | 16615EA | Optional calibration service with report |
| 16615EB-JL | 16615EB | Optional calibration service with report |
| 16615FB-JL | 16615FB | Optional calibration service with report |
Supplied accessories
| Series | Connection cable | Coaxial adapter | ENR calibration data | Product certificate |
|---|---|---|---|---|
| 16613 | One 1.2 m BNC cable | One, matched to source and host | Supplied data; delivery format per supplied-item list | One |
| 16614 | One 1.5 m probe connection cable | One, matched to source and host | Electronically stored | One |
| 16615 | One 2.0 m USB cable | One, matched to source and host | Electronically stored | One |
Selection and supply
- M means male and F means female. The BNC drive connection is not the RF output connector; appearance alone does not establish compatibility.
- Models in the same band may have different ENR ranges. Select for DUT gain/noise figure and host requirements. ENR is not a signal-output power or gain rating.
- With a compatible host and interface, the 16614/16615 support automatic ENR loading and ambient-temperature sensing for correction. The 16615 supports USB-TMC; confirm software and instrument compatibility for Windows/Linux use.
- The 16613 +28 V drive specification does not apply to all series. Do not apply external 28 V to the I²C or USB interface.
- Each row is a selectable model, not a standard package of 22 sources. The family photograph is an appearance reference only.
- Calibration services are optional. Request unlisted model services and report requirements instead of substituting another model service code.
Provide measurement host, DUT band and gain/noise-figure range, ENR, drive interface, connector, report requirements and quantity. Confirm compatibility, options and supplied items before quotation. The photograph does not replace model specifications.
