YC-TI-AWG-0002 | Ceyear 1652B Function/Arbitrary Waveform Generator
Price on request
Request a quoteOverview
The 1652B provides function and arbitrary waveform outputs with 2 standard channels, expandable to 4 by option. It features 16-bit vertical resolution, DDS/DDWS waveform generation, channel synchronization and marker outputs. Wideband signal, programmable pulse and IQ functions are configured through the relevant options.

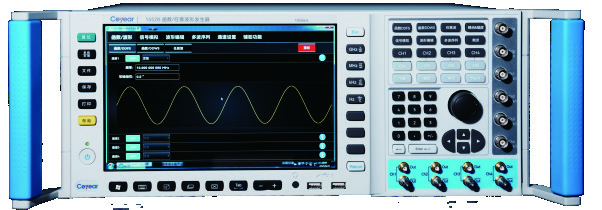

1652B expanded-configuration reference image; the illustrated 4 channels are optional, with 2 standard channels.
Core specifications
| Parameter | Specification |
|---|---|
| Channels | 2 standard; 4 with 1652B-H02 |
| Maximum sample rate | 5.0 GSa/s, interpolated to 10 GSa/s |
| Vertical resolution | 16 bit |
| Output frequency range | DC–2 GHz (DC coupling); 10 MHz–4 GHz (AC coupling) |
| Maximum waveform memory | 2 GSa per channel |
| Minimum edge time | ≤1.0 ns (10%–90%, function mode); ≤250 ps (typical, arbitrary mode) |
| DC offset | ±0.5 V, single-ended 50 Ω load |
| Display | 10.1-inch color capacitive touchscreen, 1024×800 |
| Interfaces | USB, LAN, DP |
| Playback modes | Timed, external trigger, loop and single; count 1–65530 configurable |
| Dimensions (W×H×D) | 426×177×458 mm excluding protrusions; 516×190.7×551 mm including protrusions |
Output amplitude (single-ended, 50 Ω load)
| Output mode | Frequency condition | Amplitude range |
|---|---|---|
| DC | ≤1.3 GHz | 50 mVpp–1.0 Vpp |
| DC | ≤2 GHz | 50 mVpp–600 mVpp |
| AC | ≤1.3 GHz | 50 mVpp–1.5 Vpp |
| AC | ≤2 GHz | 50 mVpp–700 mVpp |
Function options
| Option | Function |
|---|---|
| 1652B-H02 | 4-channel expansion |
| 1652B-H03 | English panel, keys, labels and manual |
| 1652B-S01 | IQ vector baseband signals |
| 1652B-S02 | Complex interference signals |
| 1652B-S03 | Complex electromagnetic environment signals |
| 1652B-S04 | Programmable pulse signals |
| 1652B-S05 | IF/RF signal generation |
| 1652B-S06 | Radar signals |
| 1652B-S07 | IQ vector modulation calibration |
| 1652B-S08 | DUC vector modulation calibration |
4 GHz is the AC-coupled frequency limit, not a limit available in every mode. The amplitude table only covers catalog conditions up to 2 GHz and is not extrapolated to 2–4 GHz. 10 GSa/s is interpolated; 250 ps is typical in arbitrary mode.
Configuration and quotation
Specify channels, frequency, amplitude, waveforms, modules, function options, interface language and quantity. The illustrated configuration, expansion modules, cables and options are not all included by default. Scope of supply, reports and delivery schedule are defined in the quotation.
