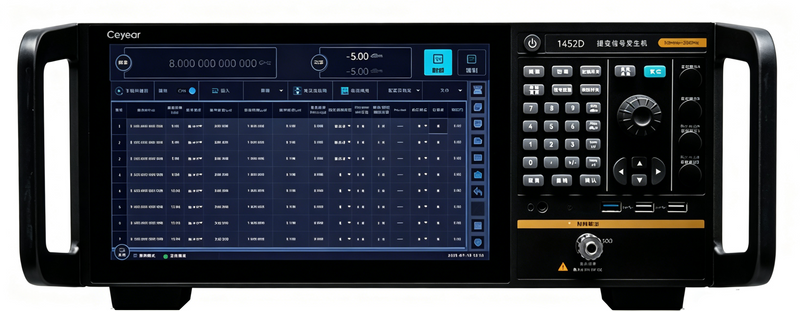

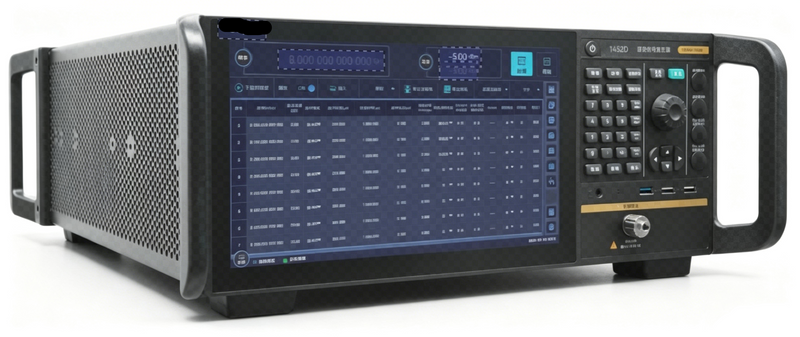

YC-TI-SG-0009 | 1452 Series Agile Signal Generator
Price on request
Request a quoteTest & Measurement
The 1452 Series agile signal generator supports wideband signal generation and rapid frequency and power switching. The 1452D and 1452G have different upper frequency limits; modulation bandwidth and features depend on configuration.
Key Specifications
| Frequency coverage | 10 MHz–44 GHz (1452D up to 20 GHz; 1452G up to 44 GHz) |
|---|---|
| Frequency resolution | 0.001 Hz |
| Frequency/power switching time | ≤ 150 ns |
| Power switching range | Up to 90 dB (band- and configuration-dependent) |
| RF modulation bandwidth | 250 MHz standard; 500 MHz, 1 GHz or 2 GHz optional |
| Operating modes | CW, sequence and PDW stream |
| Modulation | FM, phase, AM and pulse; digital and arbitrary-waveform functions depend on options |
These are series-level specifications. Confirm frequency band, output power, modulation options and accessories for the selected 1452D/G configuration.
Available through our agency sales channel. Contact Yanchuan for configuration, quotation and lead time.
