Frequency Hopping Filter ZC9M-15M-S5
Frequency Hopping Filter ZC9M-15M-S5
Couldn't load pickup availability
Performance Characteristics: Small size, customizable development according to customer specifications
Product Functions and Application Scenarios: 1. Provides excellent frequency selection and filtering in circuits and high-frequency electronic systems, effectively suppressing unwanted out-of-band signals and noise. Widely used in aviation, aerospace, radar, communications, electronic countermeasures, broadcasting, television, and various electronic test equipment.
Product Specifications:
|
Function |
Symbol |
Unit |
Specification |
|
Carrier Frequency Range |
F0 |
MHz |
9～15MHz |
|
Tuning Voltage Range |
VT |
V |
Vbb: 12V |
|
Current |
I |
30mA |
Vbb≤80mA |
|
3dB Relative Bandwidth |
BW3 |
\ |
200KHz |
|
Gain |
Gain |
|
0～2 |
|
Out-of-band Rejection |
Sel |
dBc |
Fo±1MHz≥40； |
|
Far-end Rejection |
Sel |
dB |
Attenuation at 2F0 offset ≥40dB； |
|
Flatness |
GF |
dB |
2.0 |
|
VSWR |
VSWR |
\ |
1.8 |
|
Input Signal Power |
P1dB |
dBm |
+2(P1dB compression point) |
|
Matching Impedance |
Z |
Ω |
50 |
|
Operating Temperature |
Vs |
℃ |
-40～+85 |
|
Storage Temperature |
Ts |
|
-55～+105 |
|

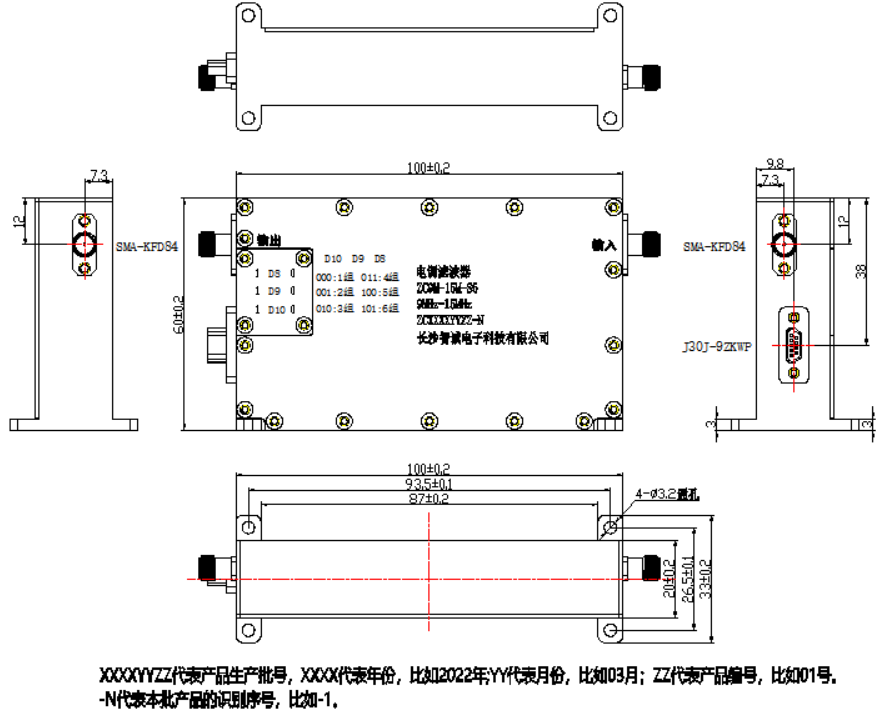

Dimensions |
Fig |
mm |
100×20×60(±0.3) |
Precautions for Use: 1. Ensure proper grounding of the product during debugging. 2. Reliability tests must be performed within the specified range, otherwise, the product may fail. 3. Exercise caution during product transportation and installation to prevent damage to the product.
