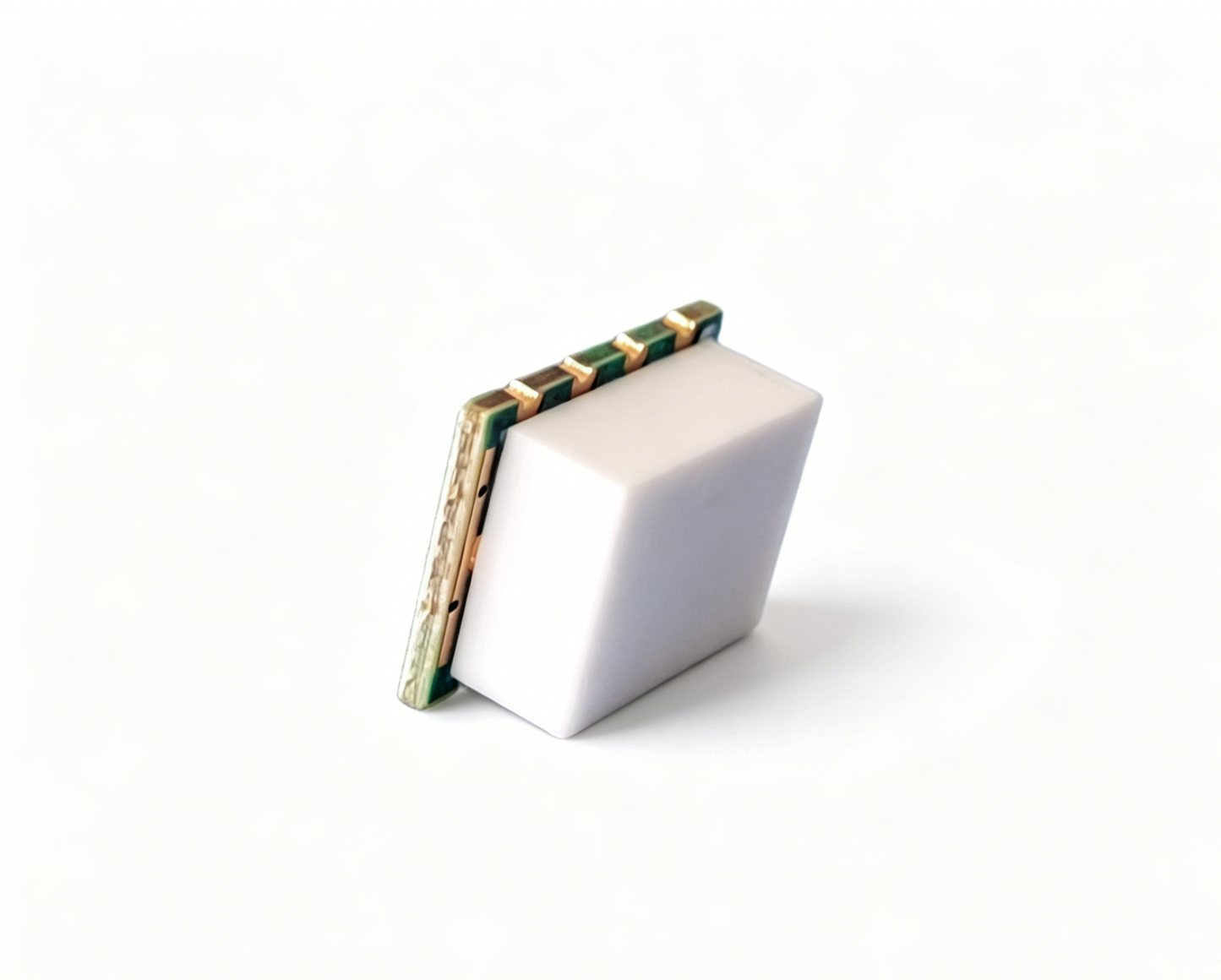

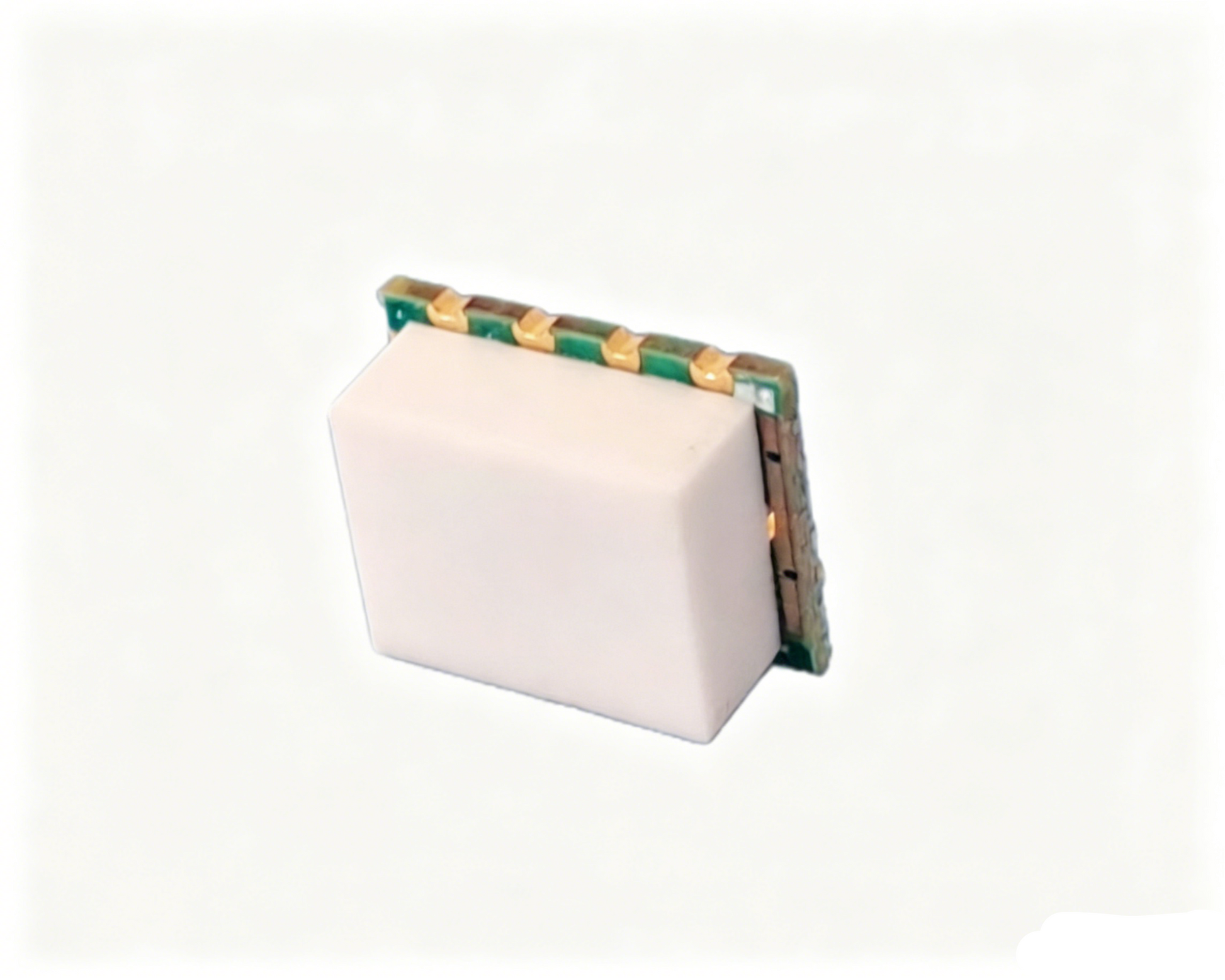

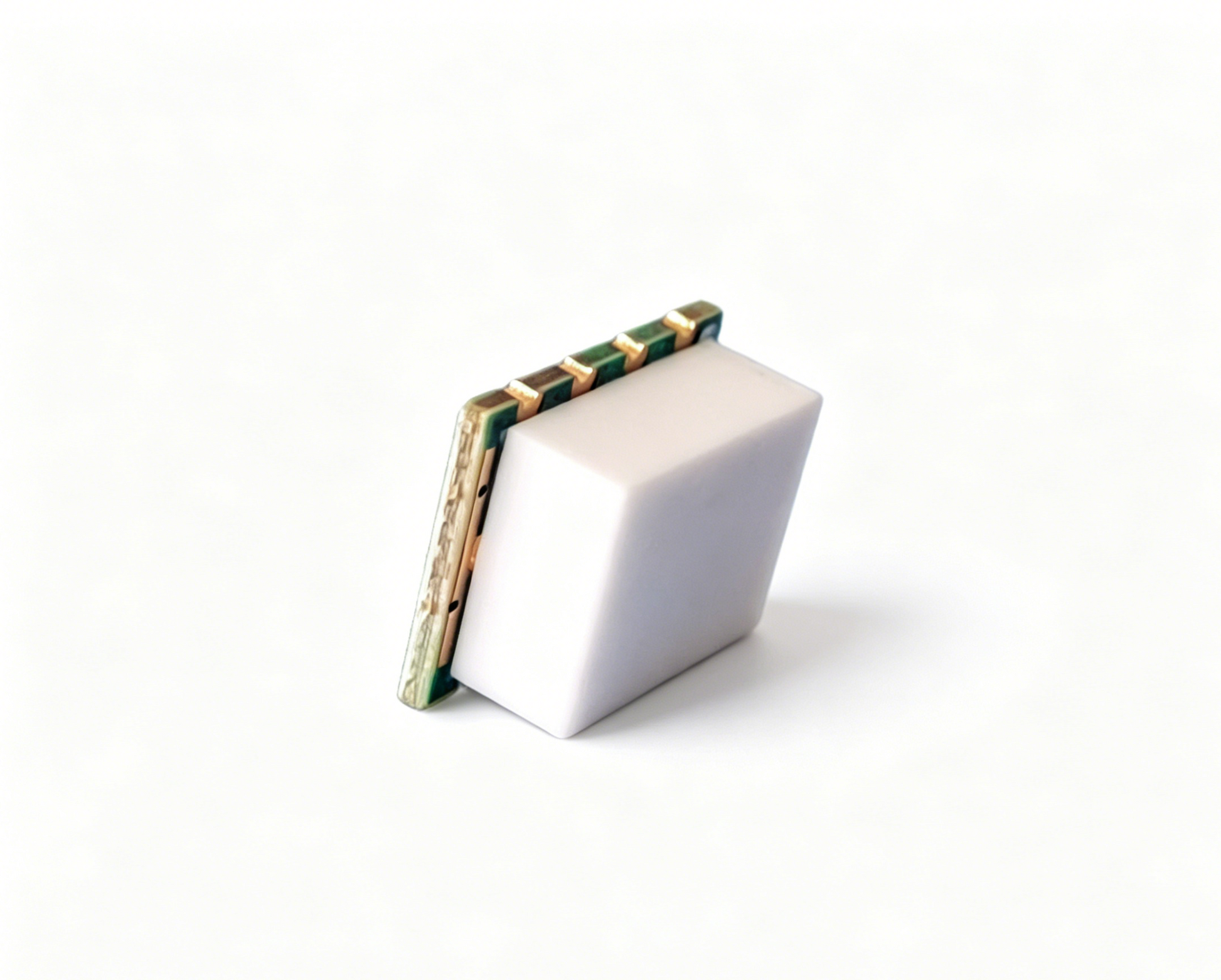

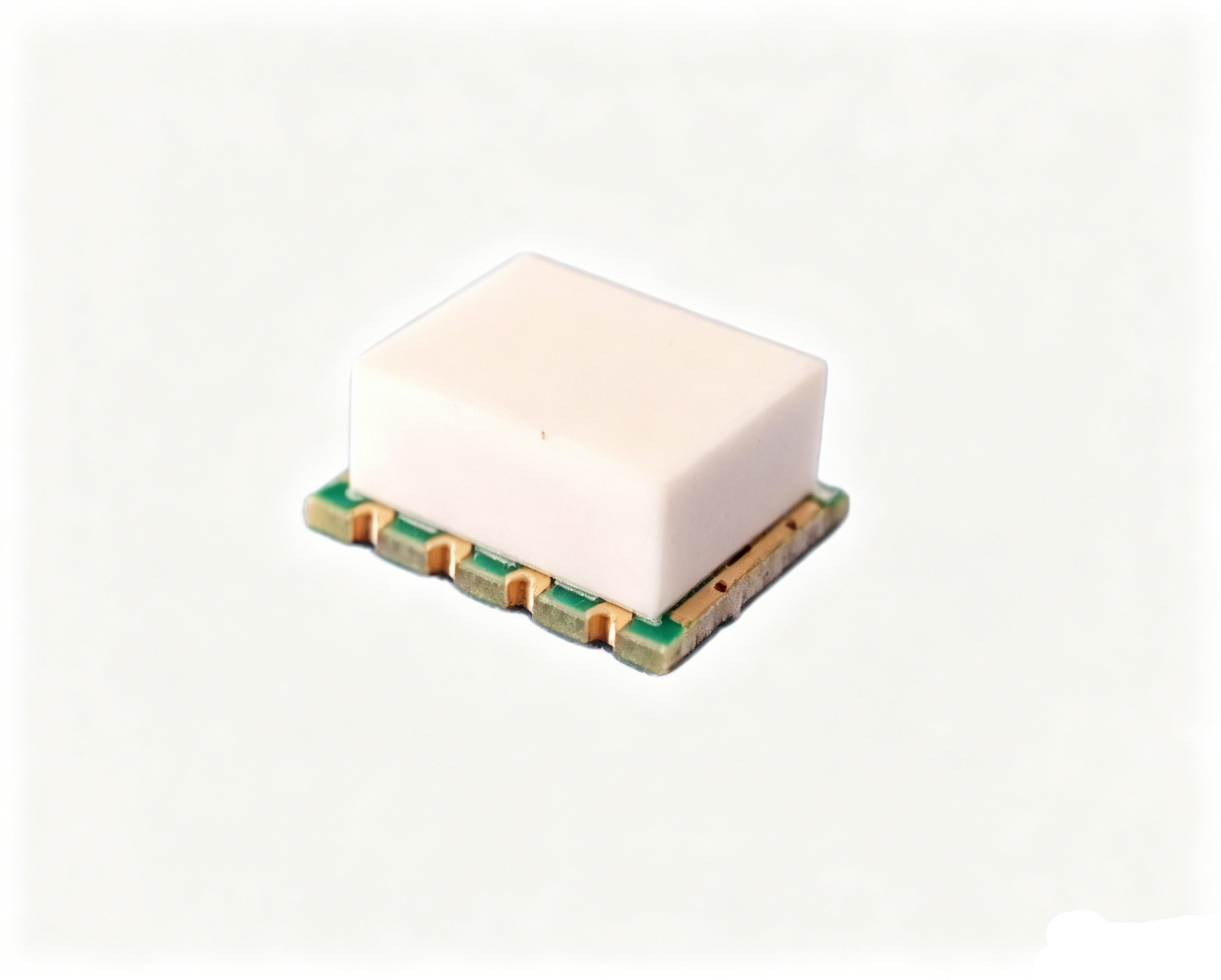

Coupler ZCO-5-1000M-20

Surface Mount Coupler

Product Configuration: Passband frequency 5-1000MHz, Insertion Loss 1.3dB, Coupling 20±1dB, Directivity greater than 17dB, VSWR 1.5;

Product Dimensions: 8.7mm*6.5mm*5.4mm

Features: Ultra-wideband, low loss, high isolation, small size, PCB + shielded cover structure, replaces Minicircuits brand

Precautions for Use: Ensure adequate grounding and secure product fixation

Application Scenarios: Communication link systems, navigation, radar, anti-drone, and other fields;
