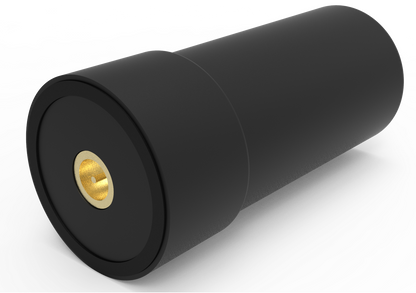

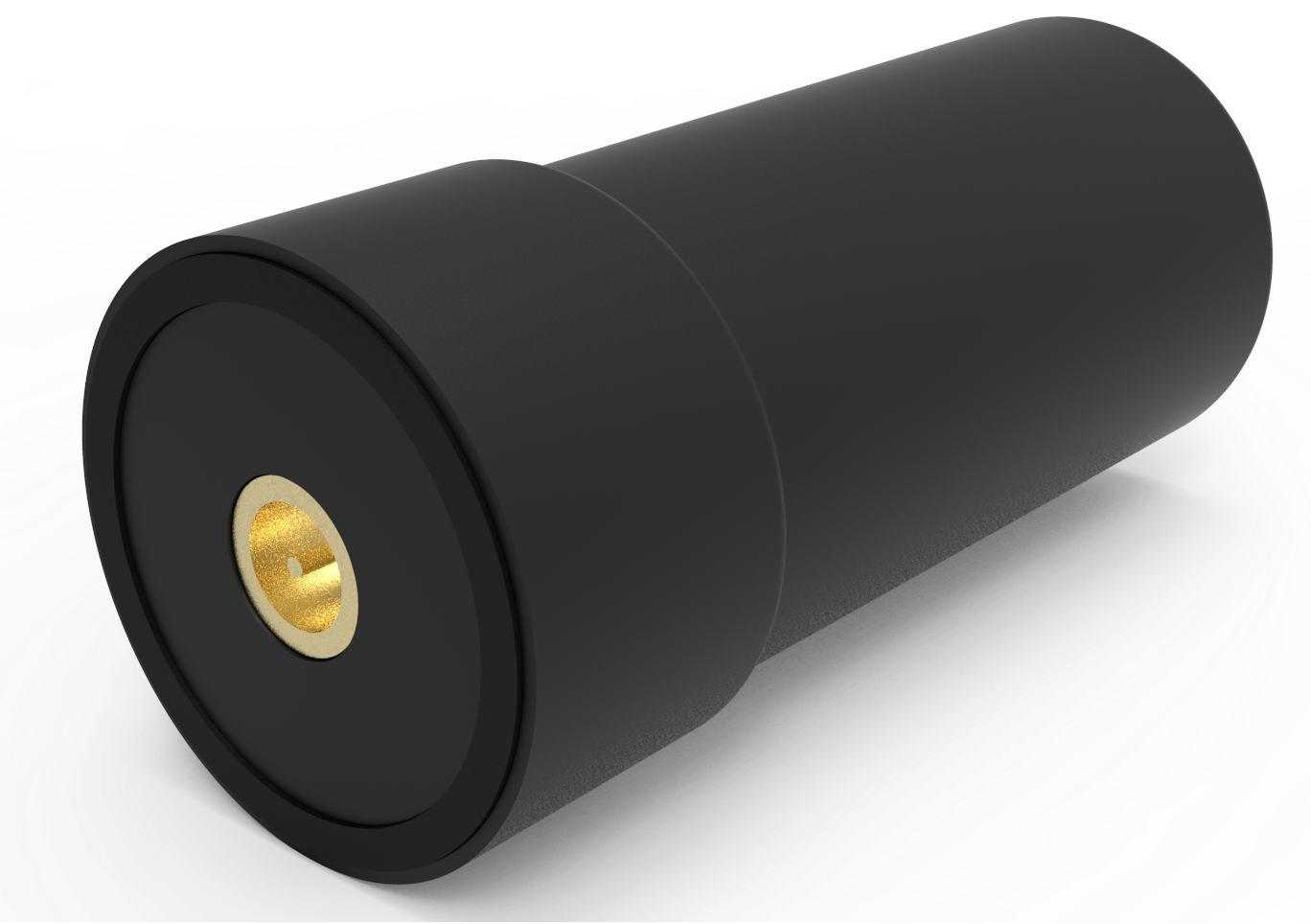

YC-LX7051 - three-system Seven-Band External Spiral Antenna

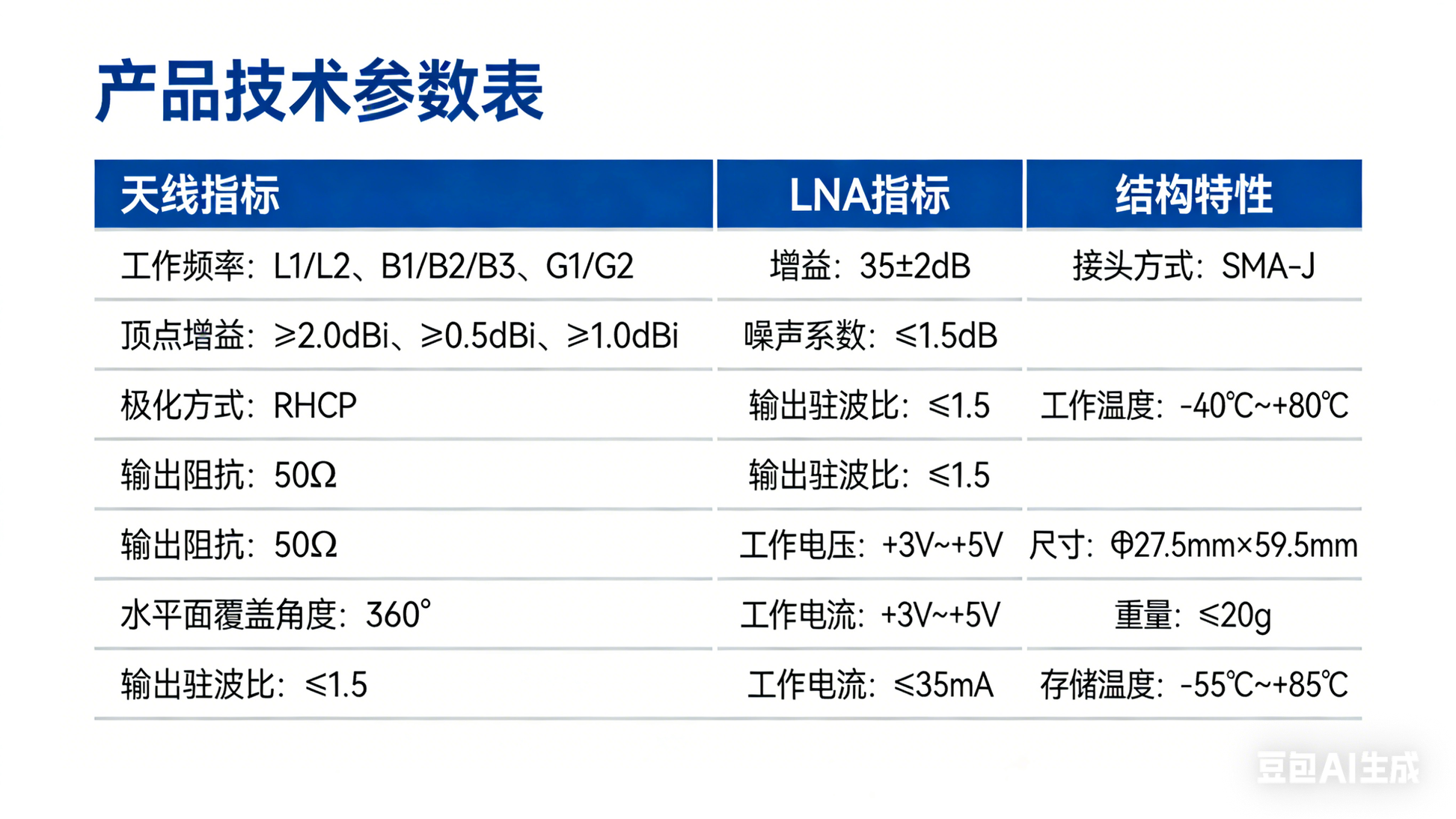

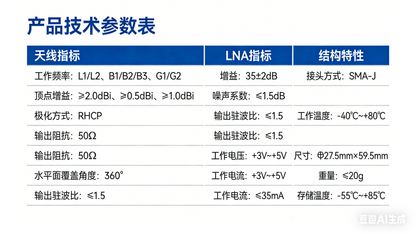

The YC-LX7051 can simultaneously receive signals from GPS L1/L2 and BDS B1/B2/B3 , GLONASS G1/G2 bands, making it suitable for three-system, high-precision measurement, and military positioning applications.

Feature 1: Lightweight. The antenna weighs less than 20g , making it particularly suitable for devices with stringent weight and size requirements, such as drones, handheld devices, and wearable devices, significantly reducing the load burden.

Feature 2: Easy installation. The antenna is powered and transmits signals via a standard SMA connector. Simply connect the antenna connector to the signal connector of the terminal device to fix the antenna in place; no additional mounting holes are required.

Feature 3: Excellent omnidirectional radiation characteristics. The antenna adopts a four-arm helical structure, which, compared with traditional microstrip antennas, has better low elevation angle gain and wide-angle circular polarization characteristics, and can receive more satellite signals at low elevation angles.
