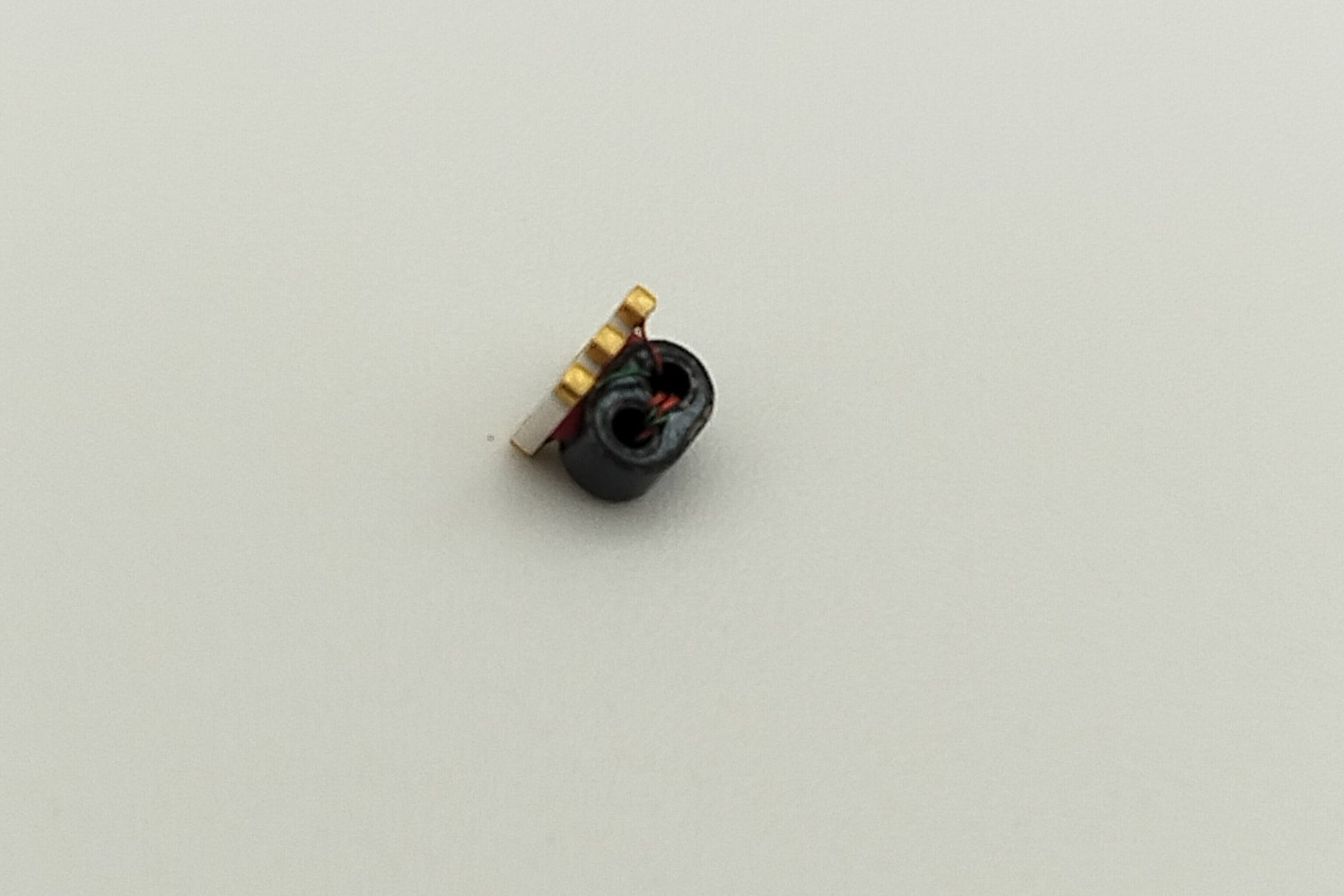

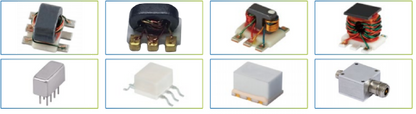

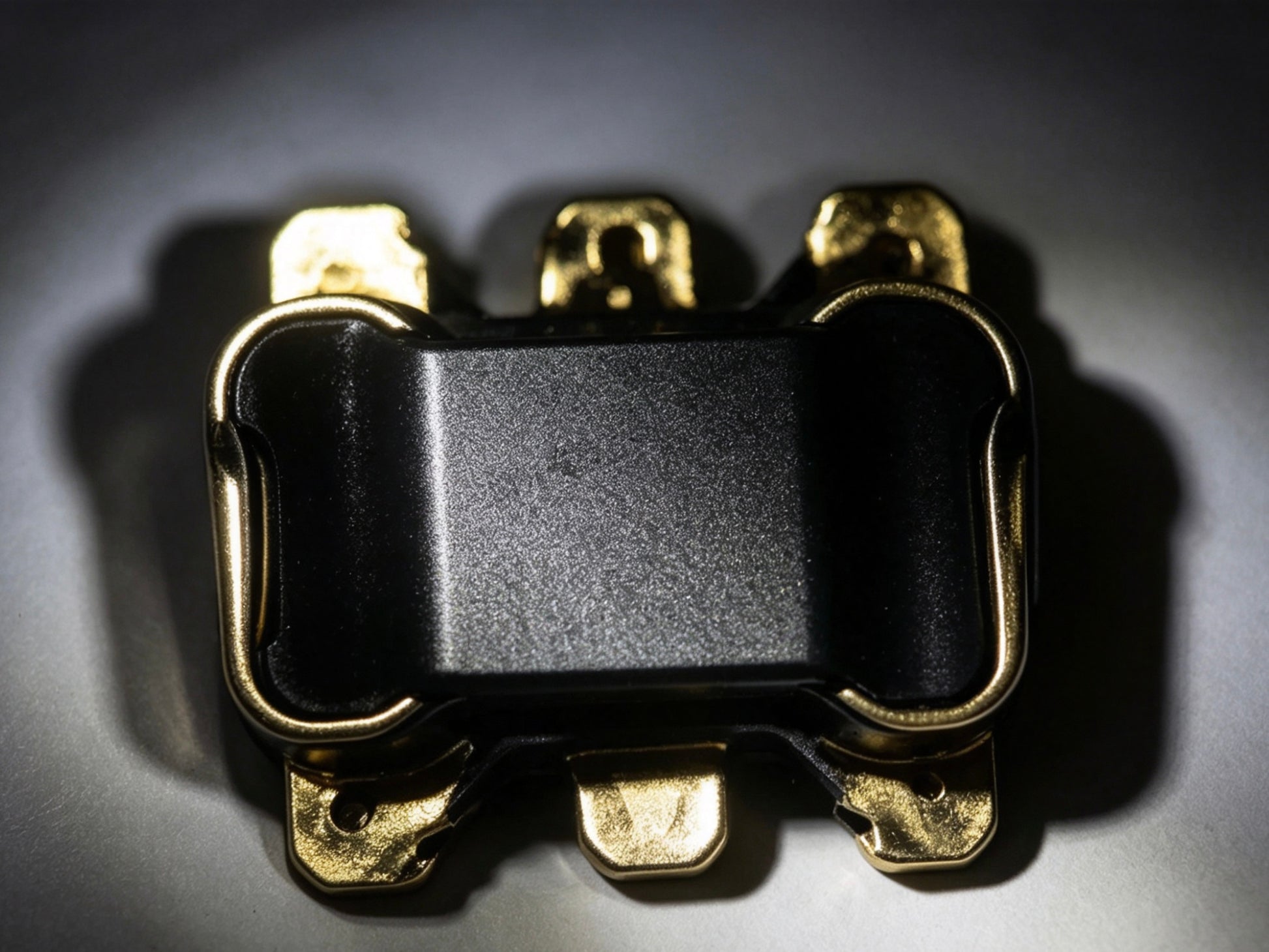

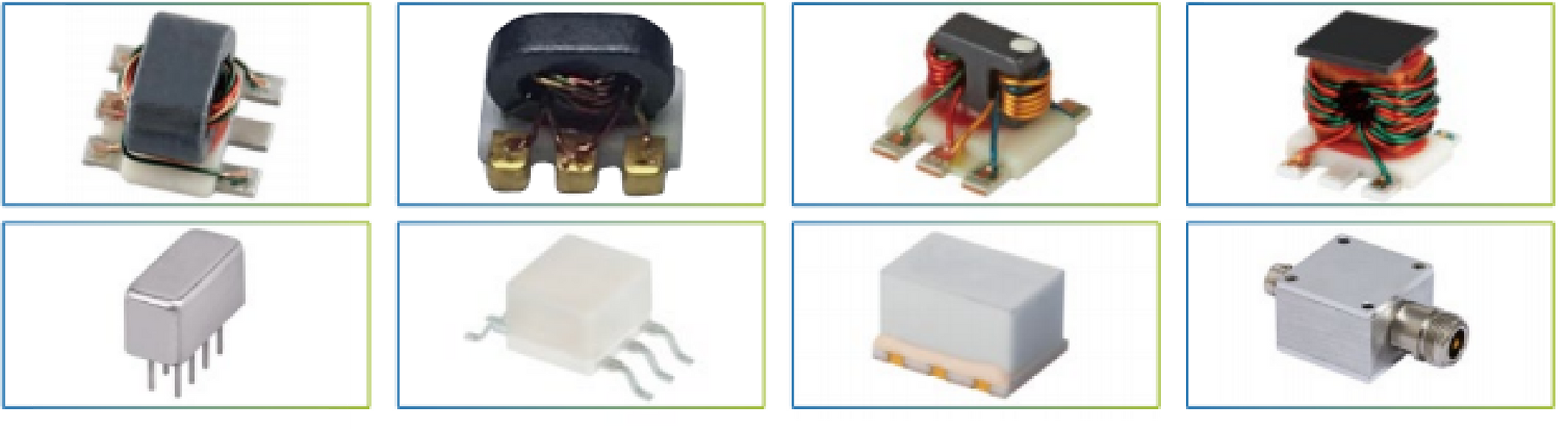

Ballan-ZCB-10-8000M-1
Ballan-ZCB-10-8000M-1
Couldn't load pickup availability
Performance features: Small size, ceramic base, impedance ratio 1:1; Low loss, ultra-wide bandwidth, wide frequency coverage; High reliability, good temperature stability; Can be customized according to customer specifications
Application scenarios: Used in communication RF links for signal differential conversion;
Product specifications:
|
Function |
Specification requirements |
|
Frequency range |
10-8000MHz |
|
Insertion loss |
href="mailto:≤1.5dB@4.5-1000MHz" ≤2.5dB@10-6000MHz |
|
Impedance ratio |
1:1 |
|
Phase consistency |
|
|
Amplitude consistency |
|
|
Power tolerance |
0.2W |
|
Current tolerance |
30mA |
|
Impedance |
50Ω |
|
Operating temperature |
-40~+85℃ |
|
Storage temperature |
-55~+100℃ |
|
Base material |
Ceramic base |
|
Package type |
SMD |
|
Definition |
Pad |
||||||
|
PRIMARY DOT |
3 |
||||||
|
PRIMARY |
2 |
||||||
|
SECONDARY DOT |
5 |
||||||
|
SECONDARY |
4 |
||||||
|
GND |
2 |
||||||
|
NOT USED |
1、6 |
||||||
|
Dimensions (unit: mm; tolerance ±0.05) |
|||||||
|
A |
3.9 |
D |
0.76 |
G |
3.4 |
M |
1.27 |
|
B |
3.4 |
E |
1.27 |
K |
4.83 |
P |
0.76 |
|
C |
3.2 |
F |
0.61 |
L |
1.65 |
|
|
Precautions for use 1. Ensure good grounding during debugging; 2. Ensure reliability tests are within specifications, otherwise the product may fail; 3. Pay attention to safety protection during product transportation and installation to avoid damage to the product;
