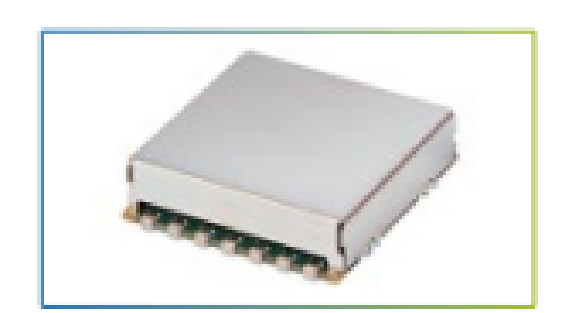

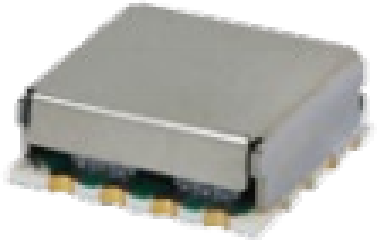

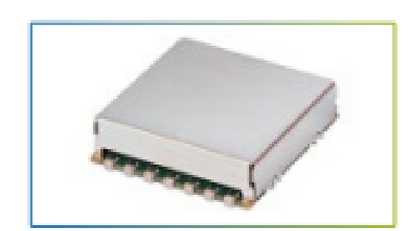

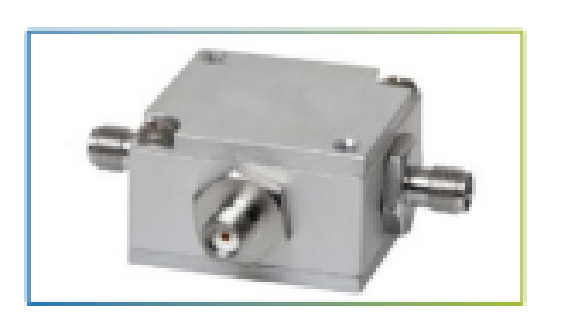

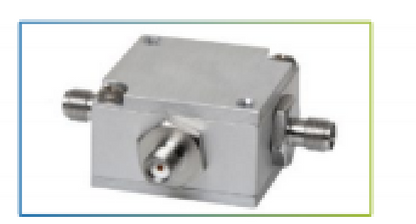

Performance features: Small size, PCB board base, 2-way power divider; Low loss, excellent consistency, high isolation; High reliability, good temperature stability; Customizable development based on customer specifications;
Product Functions and Applications 1. Provides good power distribution and signal coupling in circuit and electronic high-frequency systems; 2. Widely used in aviation, aerospace, radar, communication, electronic countermeasures, broadcasting, television, and various electronic testing equipment;
Product Specifications:
Item
Specification Requirements
Number of Ways
2-way power divider
Frequency Range
1MHz-650MHz
Insertion Loss
≤4.0dB
VSWR
1.3:1
Phase Consistency
≤2°
Amplitude Consistency
≤
Isolation
≥20dB
Impedance Matching
50Ω
Power Handling
0.5W
Operating Temperature
-40℃~85℃
Storage Temperature
-55℃~100℃
Structure Size
As shown in figure
Package Type
SMT
Definition
Pad
Common Port
1 (Input)
Port 1
3 (Output 1)
Port 2
4 (Output 2)
Ground
6
Unused Ports
2, 5
Outline Dimensions (Unit: mm; Tolerance ±0.05)
A
8.70
E
5.40
G
5.50
B
6.50
F
6.50
H
4.30
C
2.54
J
8.00
L
2.54
D
1.30
K
1.50
M
2.00
Precautions for Use 1. Ensure good grounding of the product during debugging; 2. Ensure reliability tests are within the specified requirements, otherwise the product may fail; 3. Exercise caution during product transportation and installation to avoid damage to the product
