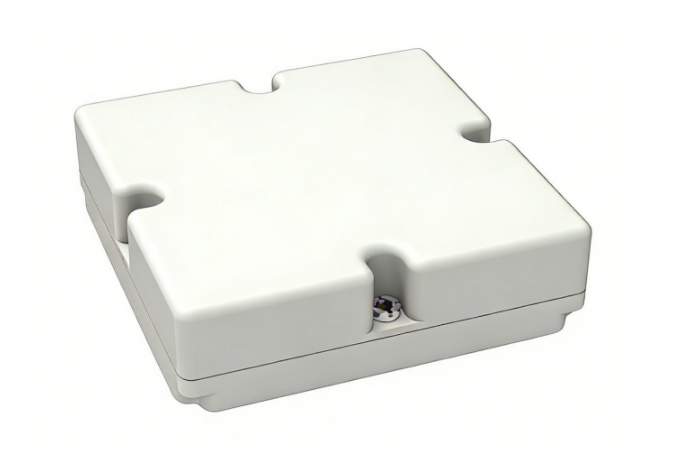

YC-KGR4141 Multi-functional B1 Anti-jamming Antenna

YC-KGR4141 is a miniaturized, multi-functional B1 anti-jamming antenna that supports joint positioning with BeiDou/GPS/GLONASS three systems. It supports B1/L1 frequency points against various suppression jamming signals such as broadband, narrowband, and pulse, and supports B1 and B3 dual-frequency positioning functions. The antenna adopts a compact design, offering advantages of small size and light weight. This product is particularly suitable for applications such as drones and aircraft that require high navigation and positioning accuracy and anti-jamming performance, ensuring stable and reliable operation in complex electromagnetic environments.

Working Frequency: BDS B1 BDS: B1, B3 GPS: L1 GLONASS: G1

Anti-jamming Capability: Single jam: ≥95dB Three single: ≥85dB

RF Output Power: -60~-70dBm

Anti-burnout Capability: Anti-continuous wave 10W

Operating Voltage: +12V~+32V

Power Consumption: ≤10W

Interface: RF interface: TNC-KF Upgrade interface: J30J-9ZKP

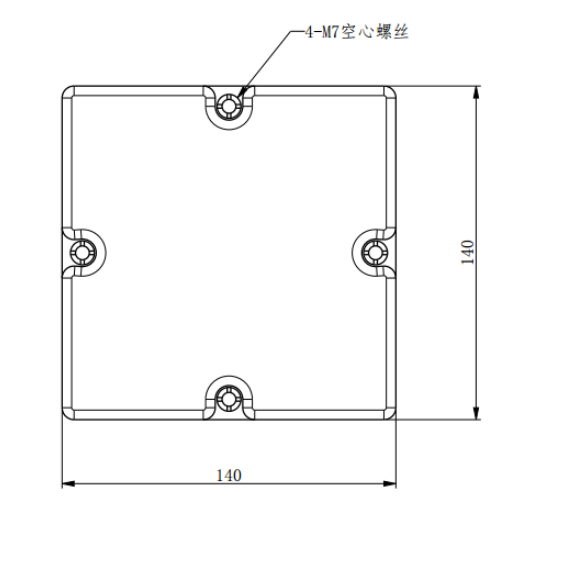

Dimensions: 140mm*140mm*40mm

Color: RAL 9003 Signal White, matte Weight: ≤600g

Installation Method: M4 screw fixing

Operating Temperature: -40℃～+75℃

Storage Temperature: -55℃～+85℃

Humidity: 95% non-condensing
