LC Filter ZCL46.5M20BP-ES
LC Filter ZCL46.5M20BP-ES
LC Filter ZCL46.5M20BP-ES

LC Filter ZCL46.5M20BP-ES

¥945.00 CNY
¥945.00 CNY
Translation missing: en.products.product.on_sale Translation missing: en.products.product.sold_out

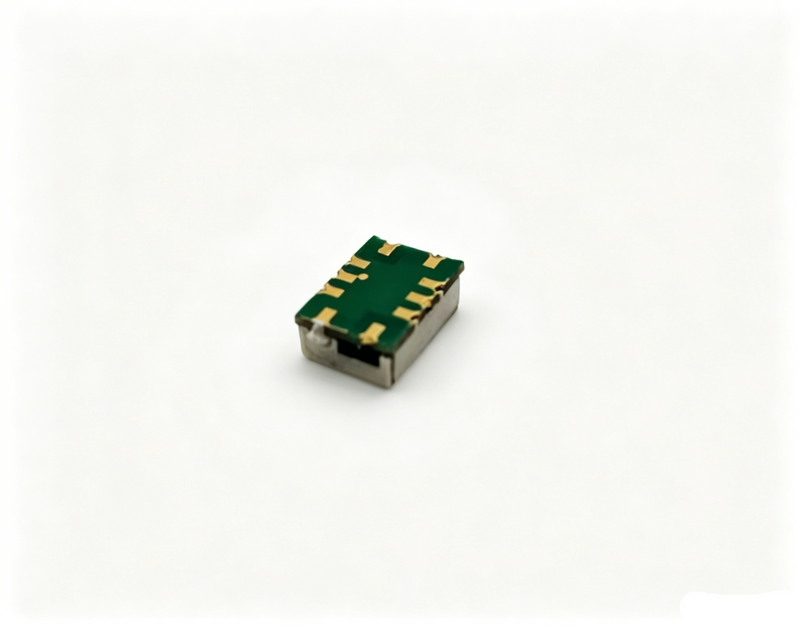

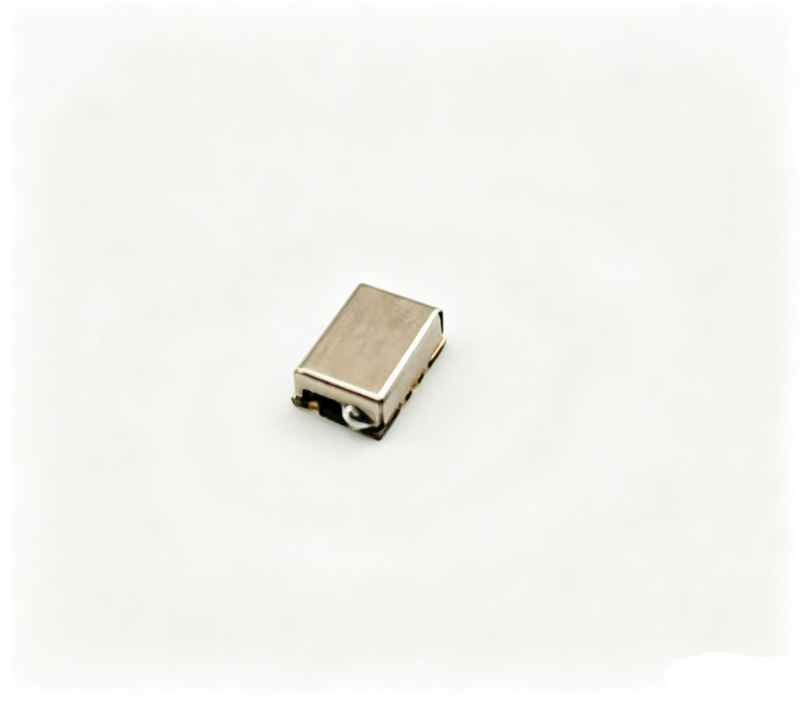

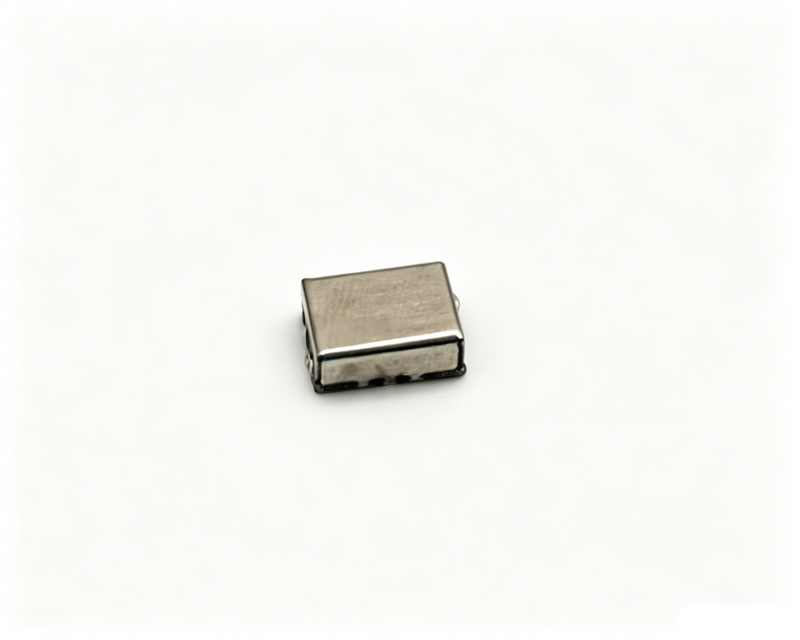

SMD LC Filter

Product Configuration: Center frequency 46.52MHz, bandwidth 20MHz, 26MHz & 68MHz meets 45dB, power 0.5W, center frequency loss 2.0dB; VSWR 1.8;

Product Dimensions: 7.3mm*5.3mm*2.8mm

Features: IF filter, low loss, small size, SMD type, PCB + shielding cover structure;

Precautions for Use: Ensure good grounding and soldering

Application Scenarios: Communication link systems, navigation, radar, anti-UAV, and other fields;

Larger order quantities qualify for better pricing (individual purchases include shipping and customs clearance fees)
