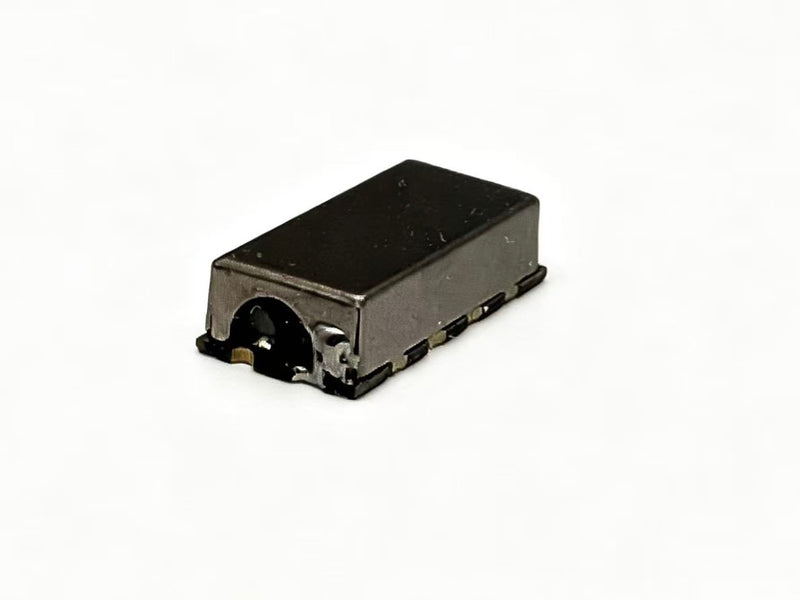

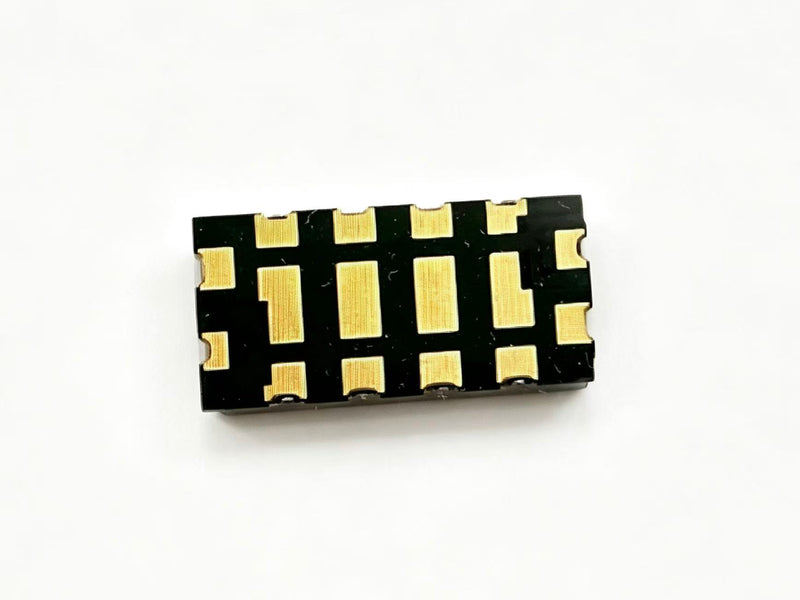

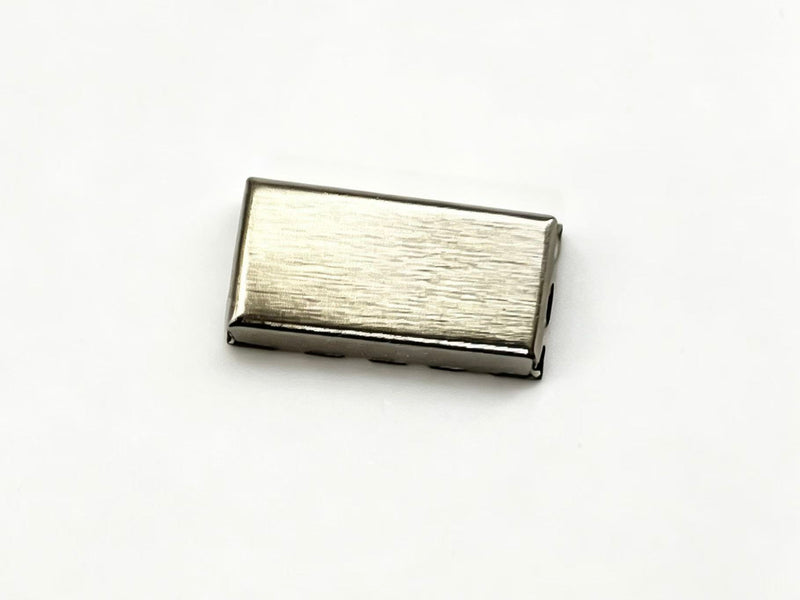

LC Filter ZCL46.5M20BP-C
Surface-Mount LC Filter
Features: Small size, high Q-value Low loss, high suppression High reliability, good temperature stability Customizable according to customer specifications
Application Scenarios: Used in communication links of navigation anti-jamming RF modules
Product Specifications:
|
Function |
Specification Requirements |
|
Center Frequency |
46.52MHz |
|
3dB Bandwidth |
≥±10.23MHz |
|
Center Frequency Loss |
≤2.5dB |
|
Passband Loss |
≤4.0dB (±10.23MHz) |
|
Out-of-band Suppression |
≥45dBc@DC-26.52MHz |
|
Passband Phase Consistency |
±4° (4 filters maintain phase consistency) |
|
Input/Output VSWR |
≤1.8 (Fo±10.23MHz) |
|
Power Capacity |
1W (CW) |
|
Input/Output Impedance |
50Ω |
|
Operating Temperature |
-40℃~+85℃ |
|
Storage Temperature |
-55℃~+85℃ |
|
Dimensions |
13.3mm*6.5mm*3.6mm |
|
Package Type |
SMD |
Outline Structure
Precautions for Use
1. Ensure proper grounding of the product during testing.
2. Reliability tests must be within the specified range; otherwise, the product may fail.
3. Take safety precautions during product transportation and installation to avoid damage.
