Frequency Hopping Filter ZC9M-15M-S5
Performance features: Small size, can be customized according to customer specifications
Product functions and application scenarios: 1. Good frequency selective filtering in circuits and electronic high-frequency systems, and can suppress unwanted out-of-band signals and noise. It is widely used in aviation, aerospace, radar, communication, electronic countermeasures, broadcasting and television, and various electronic testing equipment;
Product Project Indicators:
|
Function |
Symbol |
Unit |
Indicator Requirements |
|
Carrier Frequency Range |
F0 |
MHz |
9～15MHz |
|
Tuning Voltage Range |
VT |
V |
Vbb：12V |
|
Current |
I |
30mA |
Vbb≤80mA |
|
3dB Relative Bandwidth |
BW3 |
\ |
200KHz |
|
Gain |
Gain |
|
0～2 |
|
Out-of-band Rejection |
Sel |
dBc |
Fo±1MHz≥40; |
|
Far-end Rejection |
Sel |
dB |
Attenuation at 2F0 deviation ≥40dB; |
|
Flatness |
GF |
dB |
2.0 |
|
VSWR |
VSWR |
\ |
1.8 |
|
Input Signal Power |
P1dB |
dBm |
+2 (P1dB compression point) |
|
Matching Impedance |
Z |
Ω |
50 |
|
Operating Temperature |
Vs |
℃ |
-40～+85 |
|
Storage Temperature |
Ts |
|
-55～+105 |
|

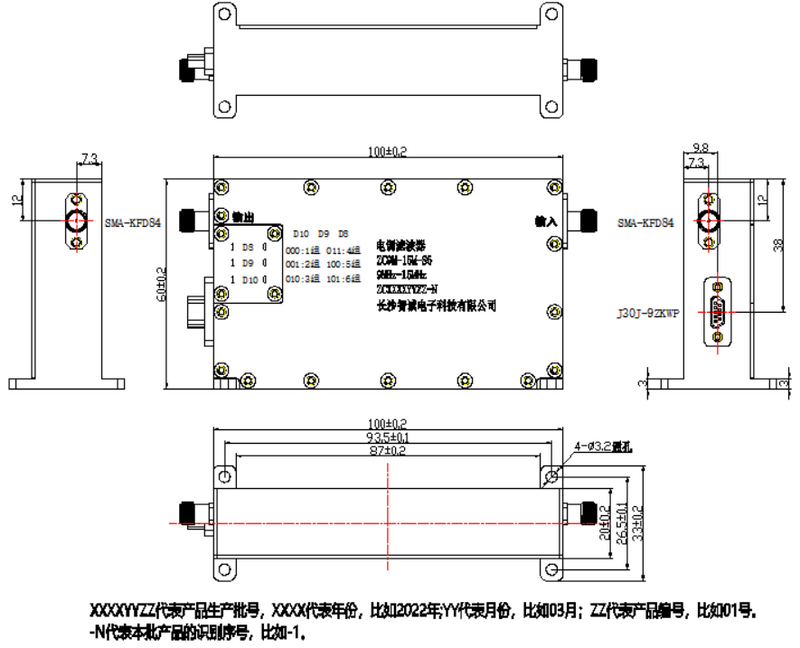

Dimensions |
Fig |
mm |
100×20×60(±0.3) |
Precautions for use: 1. Ensure good grounding of the product during debugging; 2. Ensure reliability tests are within the specified requirements, otherwise the product will fail; 3. Pay attention to safety protection during product transportation and installation to avoid damage to the product;
