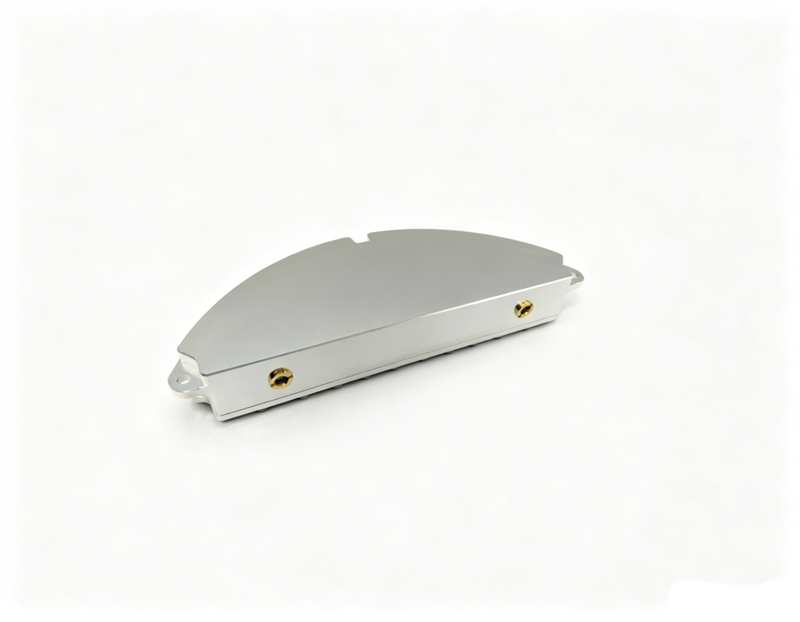

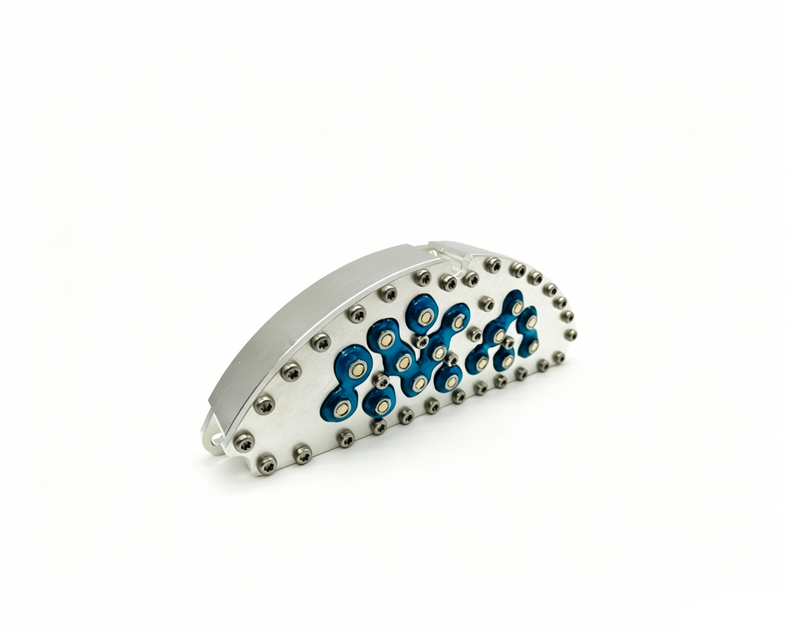

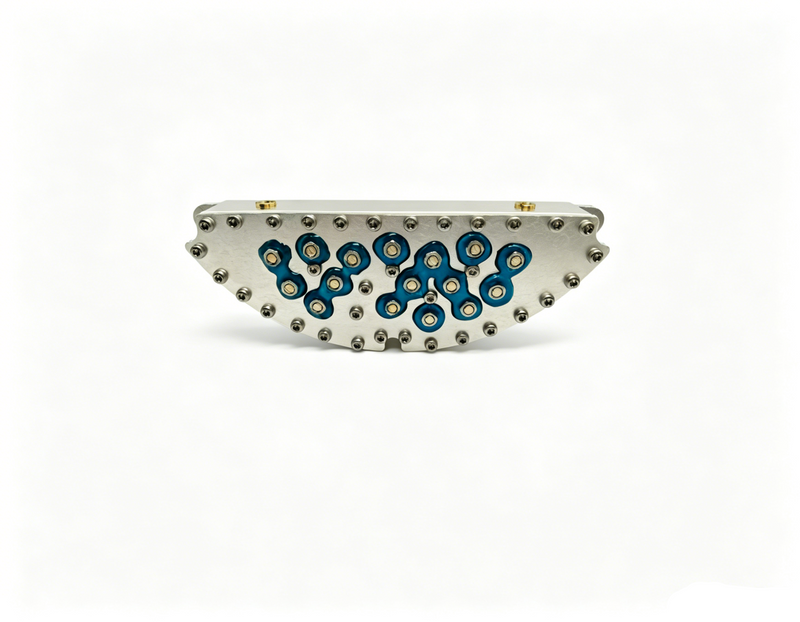

Cavity Filter ZCA1618M20BP
Cavity Filter ZCA1618M20BP
Cavity Filter ZCA1618M20BP

Cavity Filter ZCA1618M20BP

¥1,850.00 CNY
¥1,850.00 CNY
Translation missing: en.products.product.on_sale Translation missing: en.products.product.sold_out

SMA Connector + Enclosed Coaxial Cavity Filter

Product Configuration: Center frequency 1610MHz, passband bandwidth 20MHz, suppression 1585MHz & 2491MHz achieving 70dB; loss 1.5dB, power 50W; VSWR 1.5;

Product Dimensions: 90mm*58mm*25mm

Features: High reliability, narrow band, metal structure, small size, low loss, high power;

Usage Precautions: Ensure adequate grounding and secure product mounting

Application Scenarios: Communication link systems, navigation, radar, anti-drone, and other fields;

Larger quantities ordered, more favorable prices (individual purchases include shipping and customs clearance fees)
