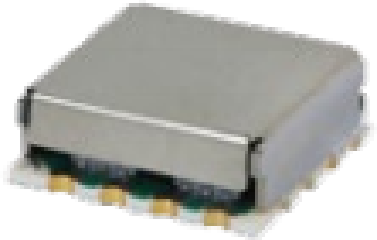

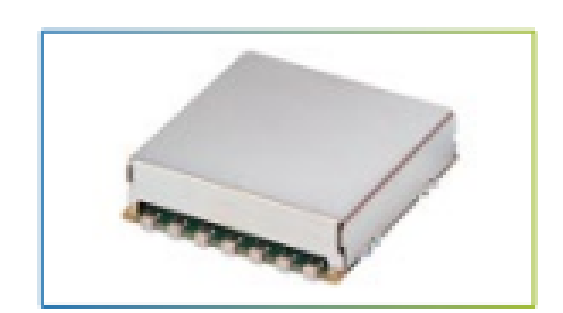

Power Divider - ZCG-1-650M-2
Performance features: Small size, PCB board base, two-way power divider; Low loss, excellent consistency indicators, high isolation; High reliability, good temperature stability; Customizable development based on customer's indicator requirements;
Product functions and application scenarios 1. Good power distribution and signal coupling in circuit and electronic high-frequency systems; 2. Widely used in aviation, aerospace, radar, communication, electronic countermeasures, broadcasting and television, and various electronic testing equipment;
Product specifications:
|
Item |
Specification Requirements |
|
Number of Channels |
Two-way power divider |
|
Frequency Range |
1MHz-650MHz |
|
Insertion Loss |
≤4.0dB |
|
VSWR |
1.3：1 |
|
Phase Consistency |
≤2° |
|
Amplitude Consistency |
≤ |
|
Isolation |
≥20dB |
|
Impedance Matching |
50Ω |
|
Power Rating |
0.5W |
|
Operating Temperature |
-40℃~85℃ |
|
Storage Temperature |
-55℃~100℃ |
|
Structural Dimensions |
As shown in figure |
|
Package Type |
SMD |
|
Definition |
Pad |
||||||
|
Common Port |
1 (Input) |
||||||
|
Port 1 |
3 (Output 1) |
||||||
|
Port 2 |
4 (Output 2) |
||||||
|
Ground |
6 |
||||||
|
Unused Ports |
2, 5 |
||||||
|
Outline Dimensions (Unit: mm; Tolerance ±0.05) |
|||||||
|
A |
8.70 |
E |
5.40 |
G |
5.50 |
|
|
|
B |
6.50 |
F |
6.50 |
H |
4.30 |
|
|
|
C |
2.54 |
J |
8.00 |
L |
2.54 |
|
|
|
D |
1.30 |
K |
1.50 |
M |
2.00 |
|
|
Precautions for use 1. Ensure good grounding of the product during commissioning; 2. Reliability tests must be within the specified range, otherwise the product will fail; 3. Pay attention to safety protection during product transportation and installation to avoid damage to the product
For larger orders, prices are more favorable (individual purchases include shipping and customs clearance fees)
