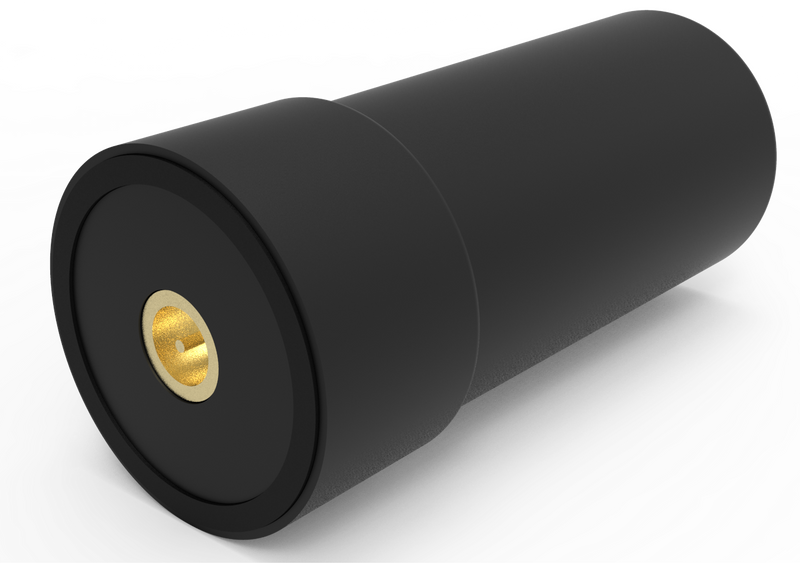

YC-LX7051 - Samsung Seven-Band External Spiral Antenna

YC-LX7051 can simultaneously receive GPS L1/L2, BDS B1/B2/B3, and GLONASS G1/G2 band signals, suitable for triple-system, high-precision measurement, and military positioning fields.

Feature 1: Lightweight. The total weight of the antenna is less than 20g, making it especially suitable for devices with strict requirements for mass and volume, such as UAVs, handheld devices, and wearable devices, which can greatly reduce the payload burden.

Feature 2: Easy installation. The antenna feeds and transmits signals through a standard SMA connector. The antenna can be fixed by simply connecting the antenna connector to the signal connector of the terminal device, without the need for additional mounting holes.

Feature 3: Excellent omnidirectional radiation characteristics. The antenna adopts a four-arm helical structure. Compared with traditional microstrip antennas, it has better low-elevation gain and wide-angle circular polarization characteristics, enabling it to receive more low-elevation satellite signals.

For larger orders, prices are more favorable (individual purchases include shipping and customs clearance fees)
